Product Overview

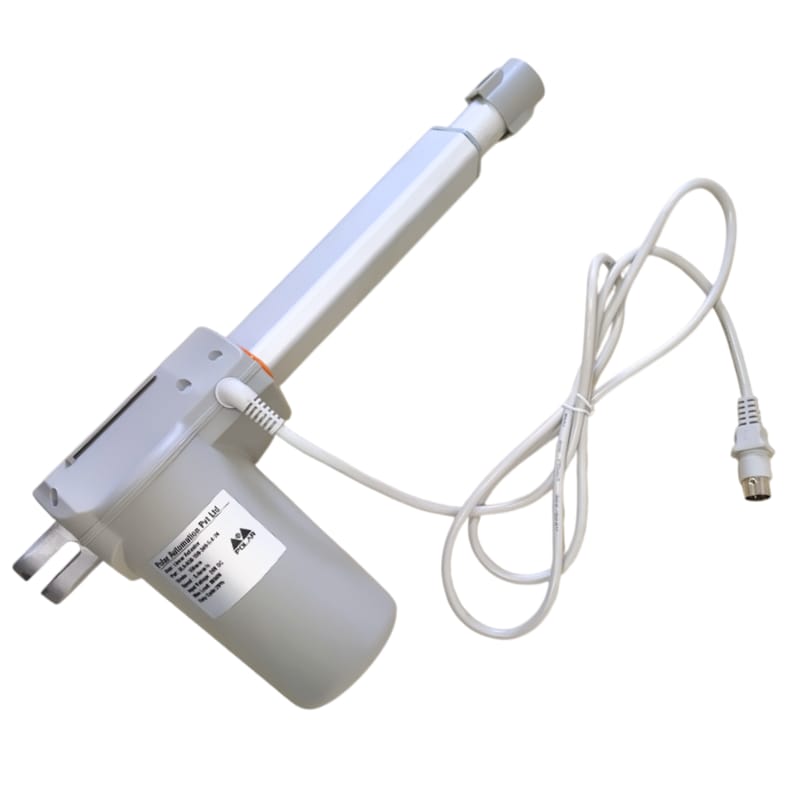

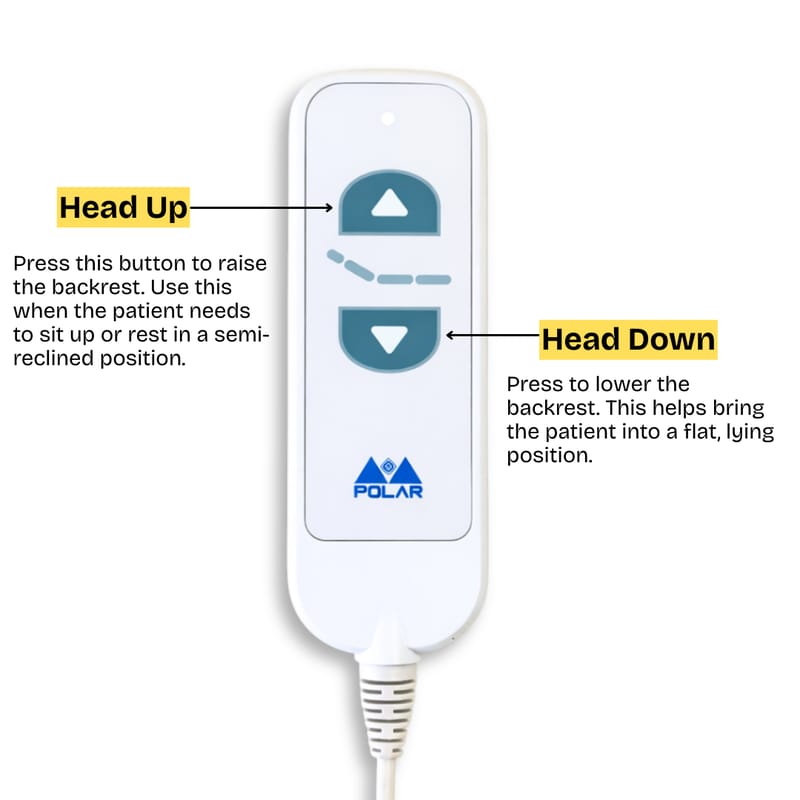

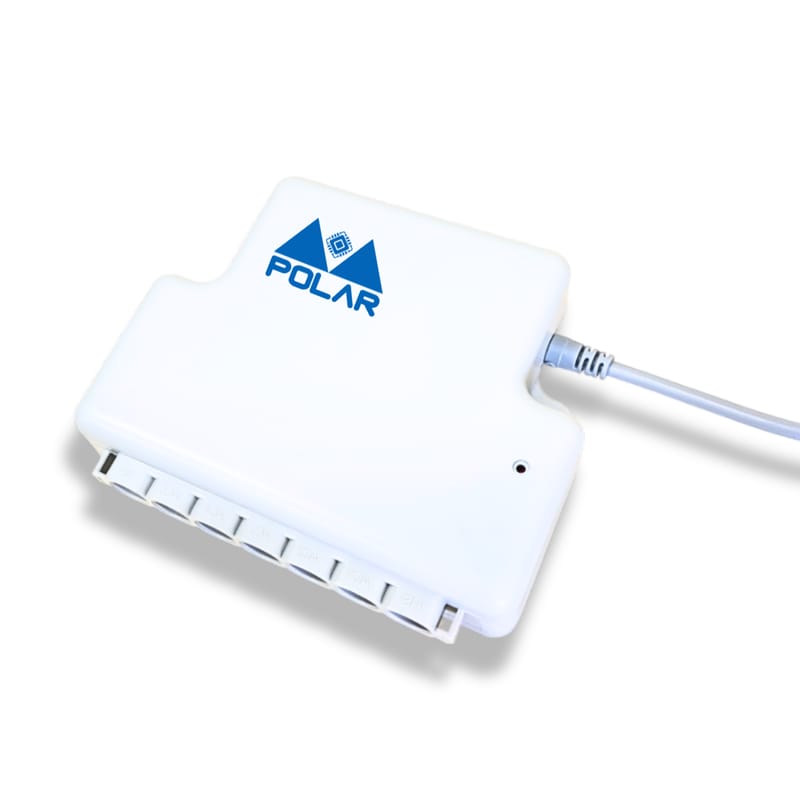

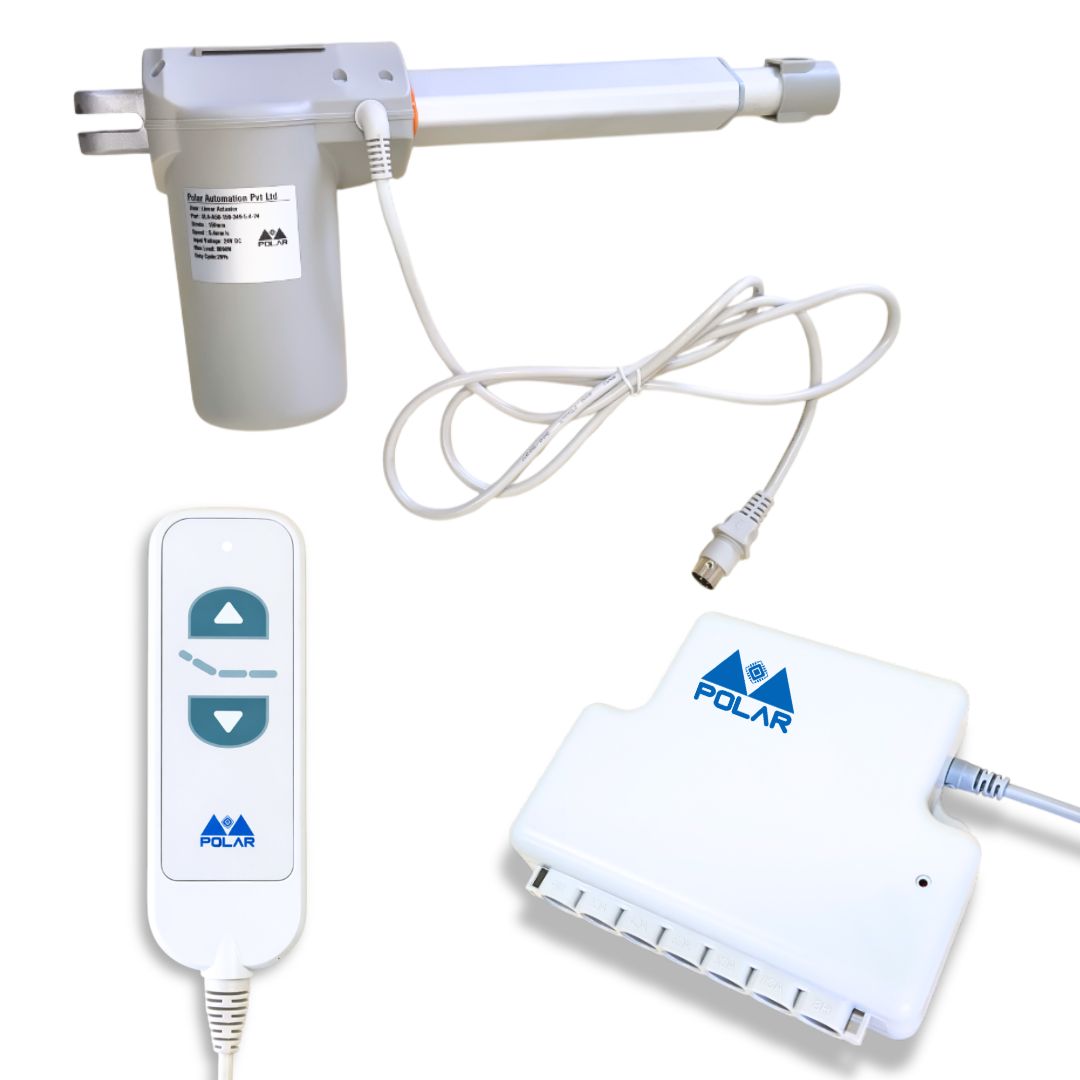

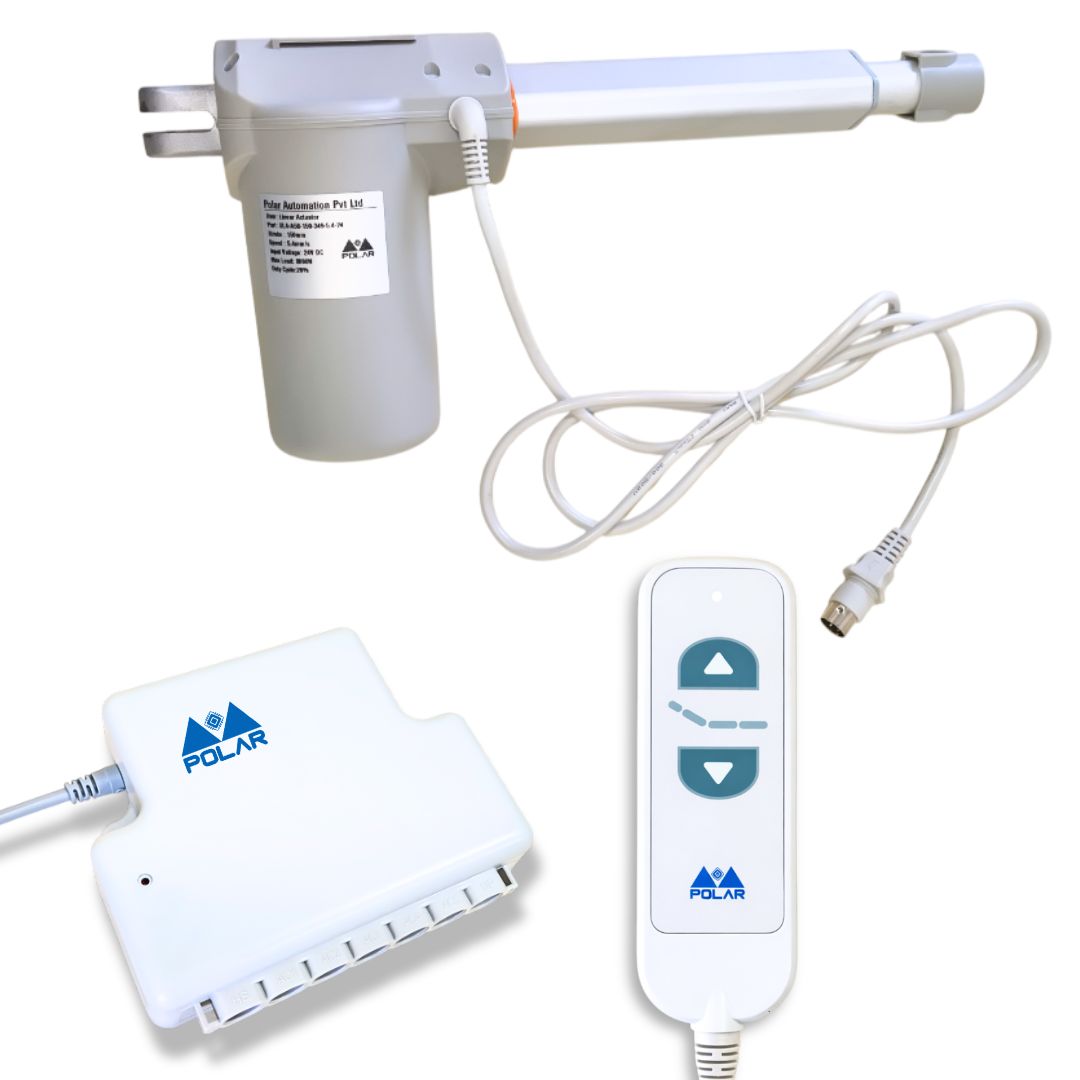

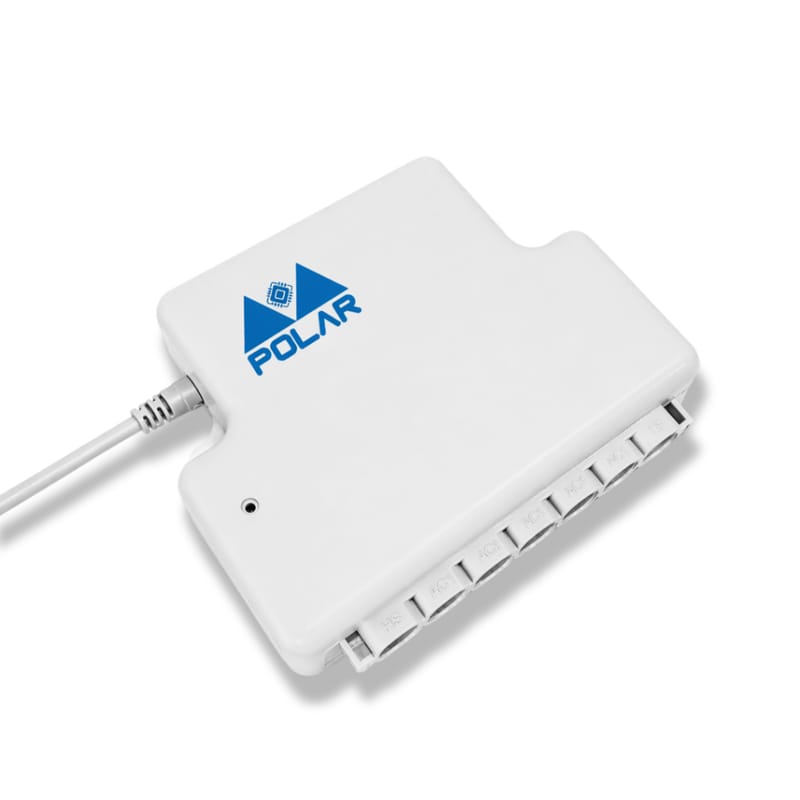

This 1-function hospital-bed linear actuator supports single bed adjustment functions, such as back-rest positioning, with an extended stroke length for a wider range of movement. It offers smooth, silent, and controlled operation, making it ideal for hospital and home-care bed systems. A wired control unit and handset ensure simple and dependable use.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 325 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)




Key Benefits

• Extended stroke for improved positioning range
• Stable and quiet linear motion
• High load handling for hospital-grade use
• Reliable safety protection
• Simple wired handset control
