Product Overview

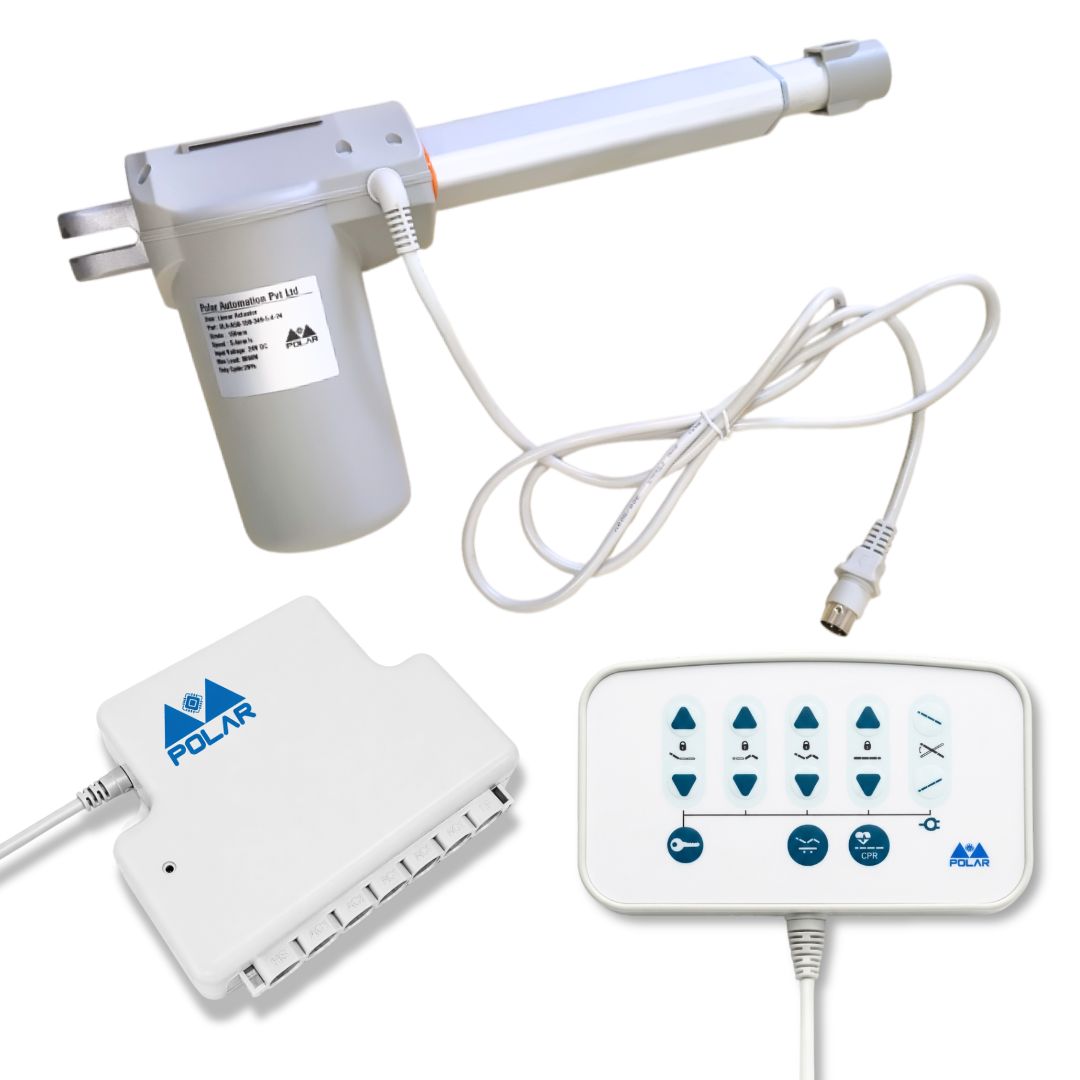

This extended-stroke variant offers enhanced vertical travel for greater flexibility in patient positioning. Designed for demanding hospital environments, it delivers reliable lifting capacity and smooth positioning control.

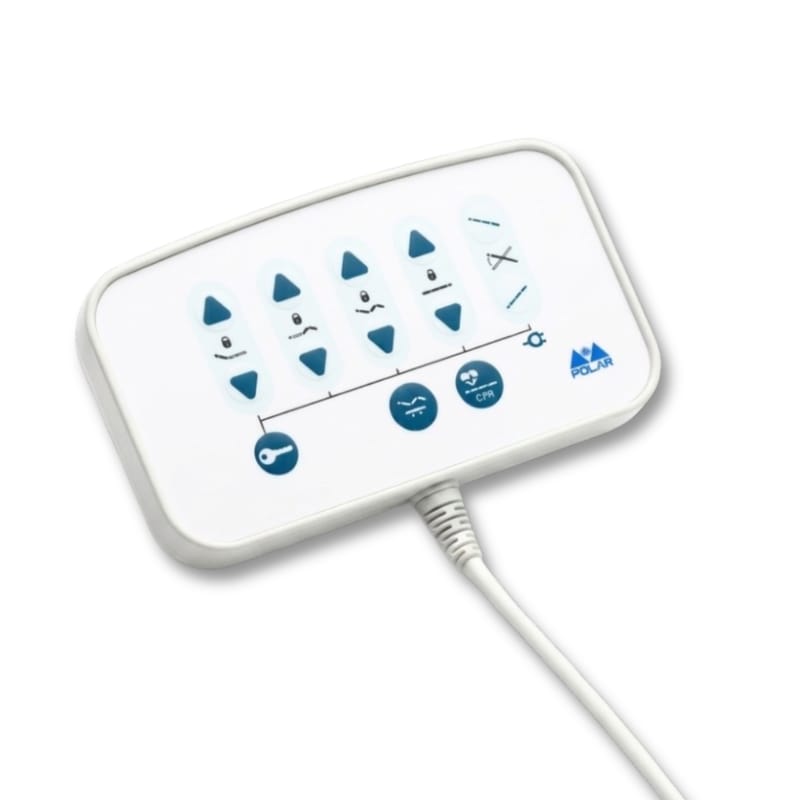

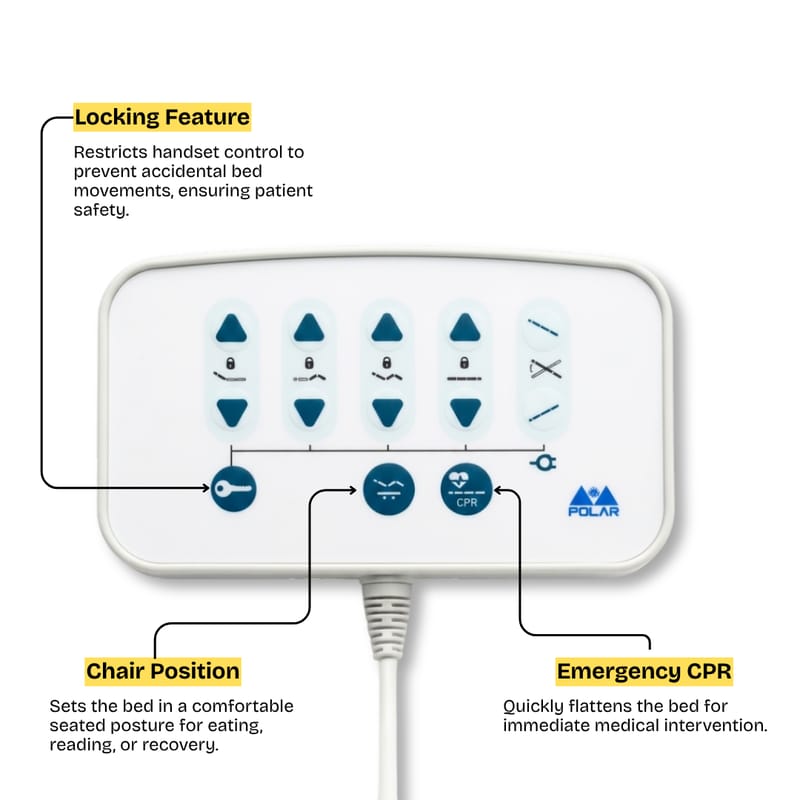

The nurse panel enables secure and convenient bed management by healthcare professionals.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 325 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Extended lifting range
• High load performance
• Stable and precise positioning
• Designed for professional healthcare use
• Durable and long service life
