Product Overview

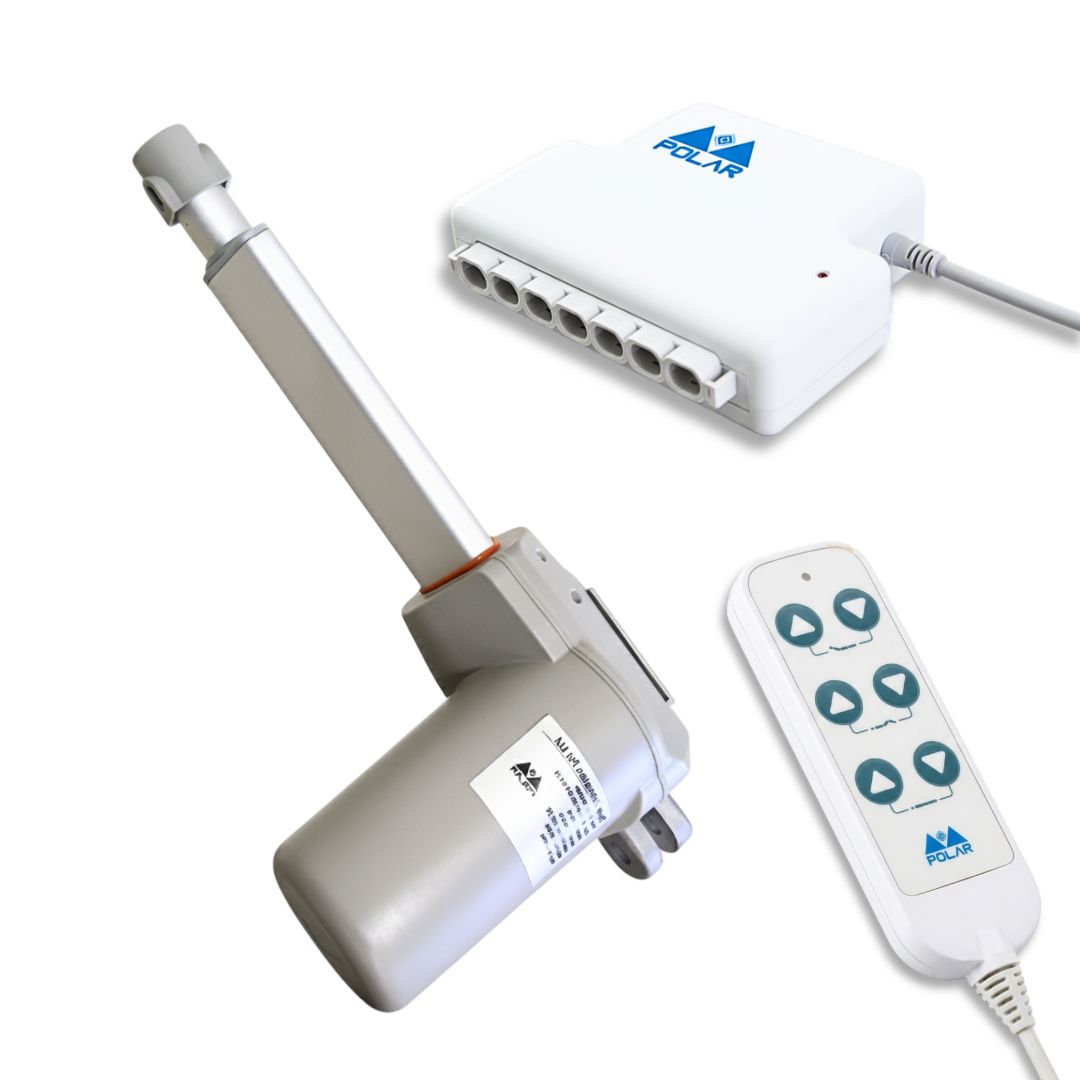

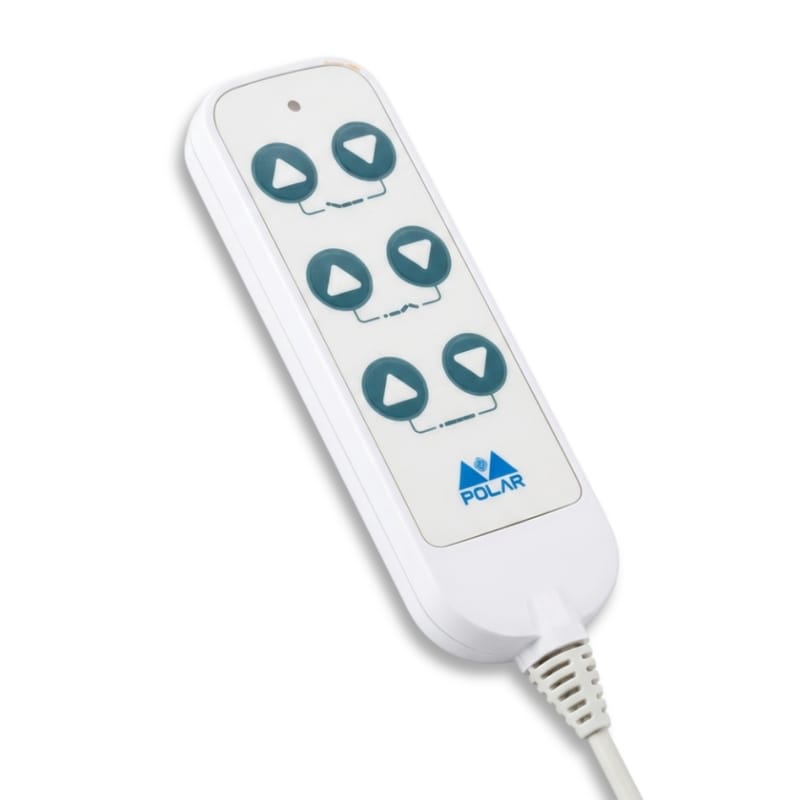

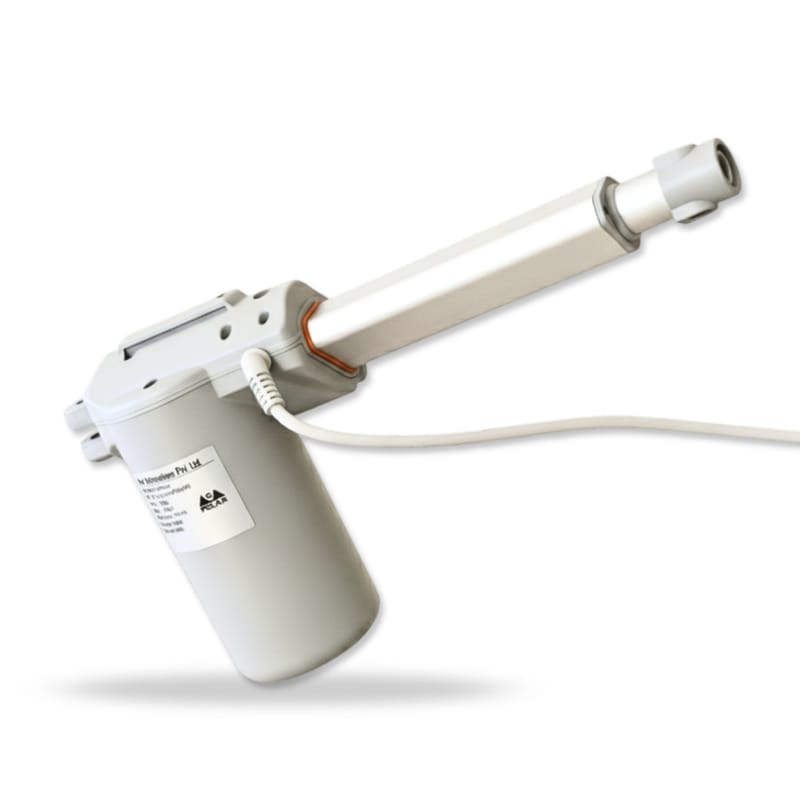

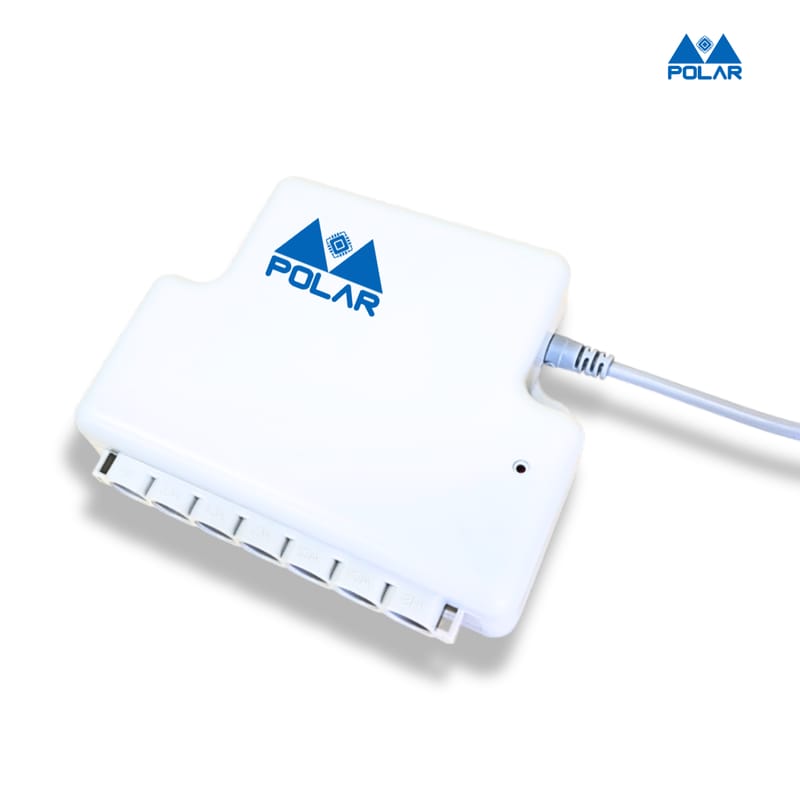

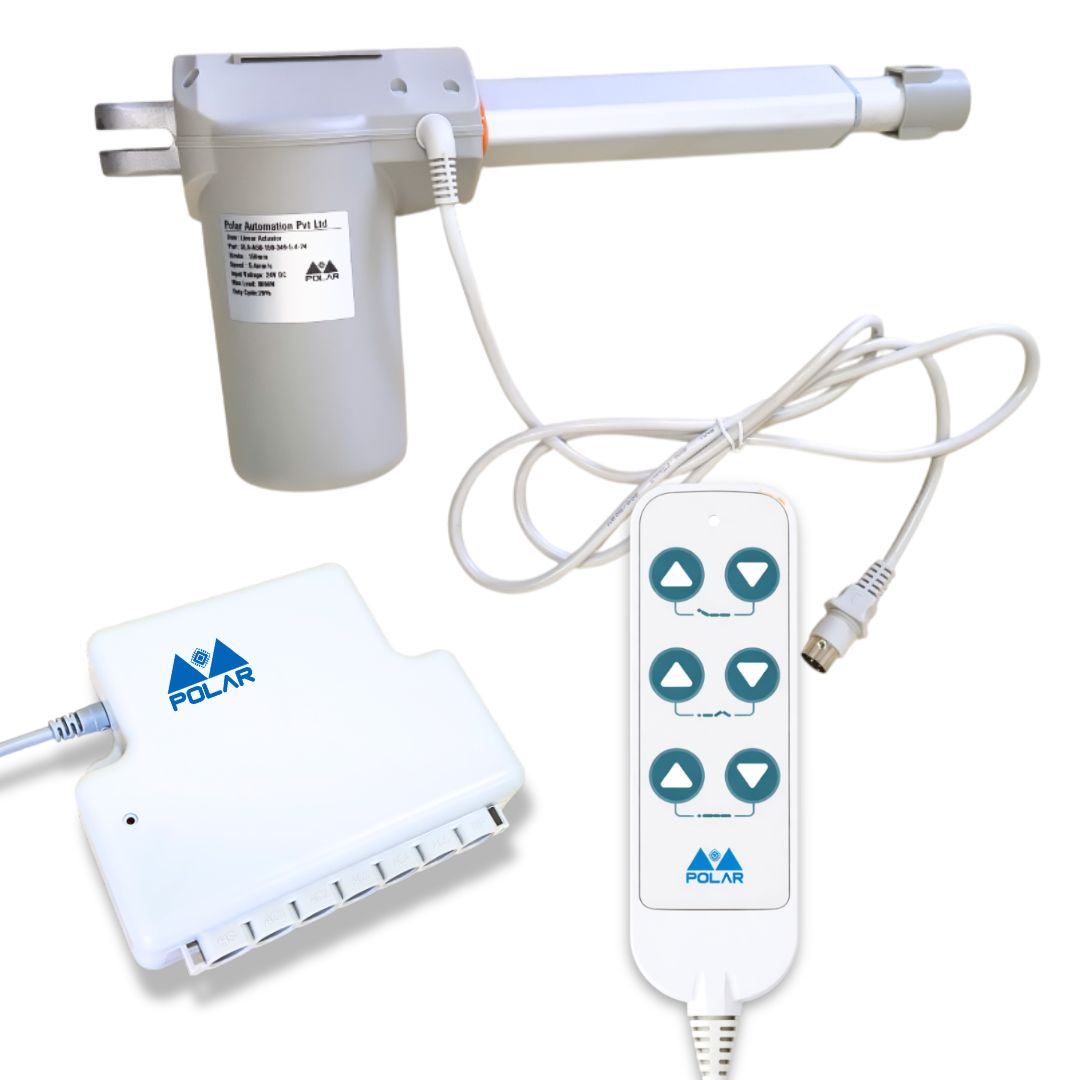

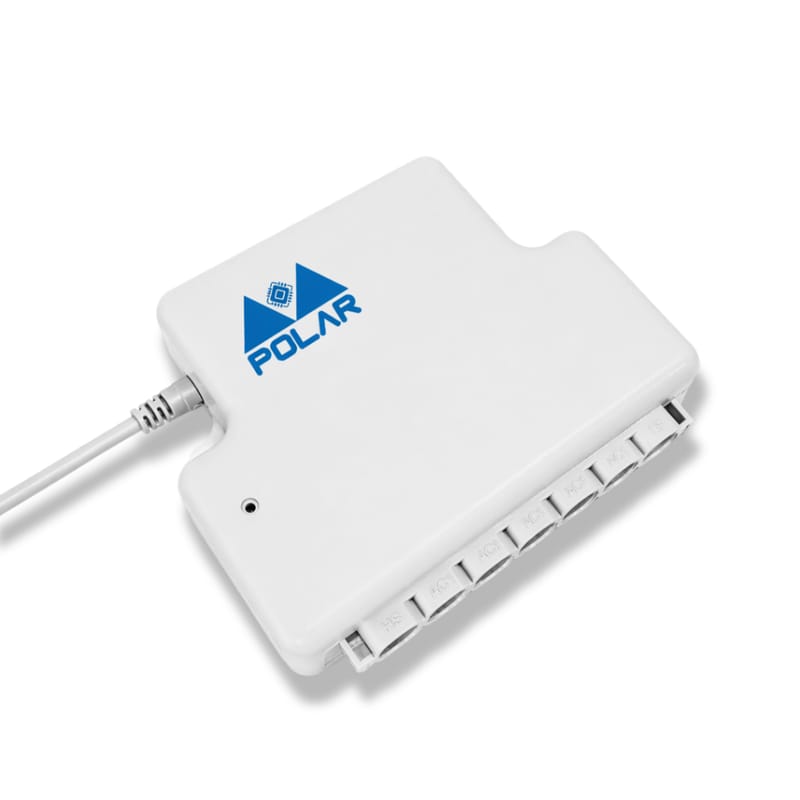

This three-function hospital-bed linear actuator system is designed to enable independent adjustment of the head/back-rest, leg-rest, and bed height or tilt. It delivers smooth, quiet, and precise linear motion, ensuring optimal patient positioning and improved caregiver ergonomics. The system includes a wired control unit and handset for simple and reliable operation. Suitable for both hospital beds and home-care beds.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 100 mm
• Full Length: 100 mm – 288 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

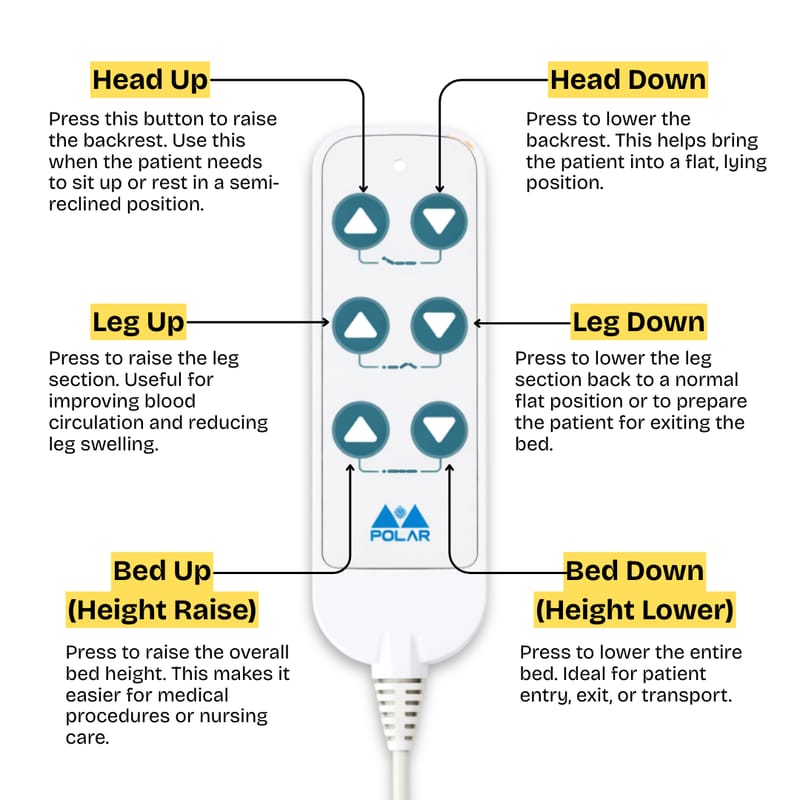

• Independent control of three bed functions
• Smooth and precise adjustment
• Quiet operation for enhanced patient comfort
• High load capacity for reliable hospital use
• Easy-to-use wired handset
