Product Overview

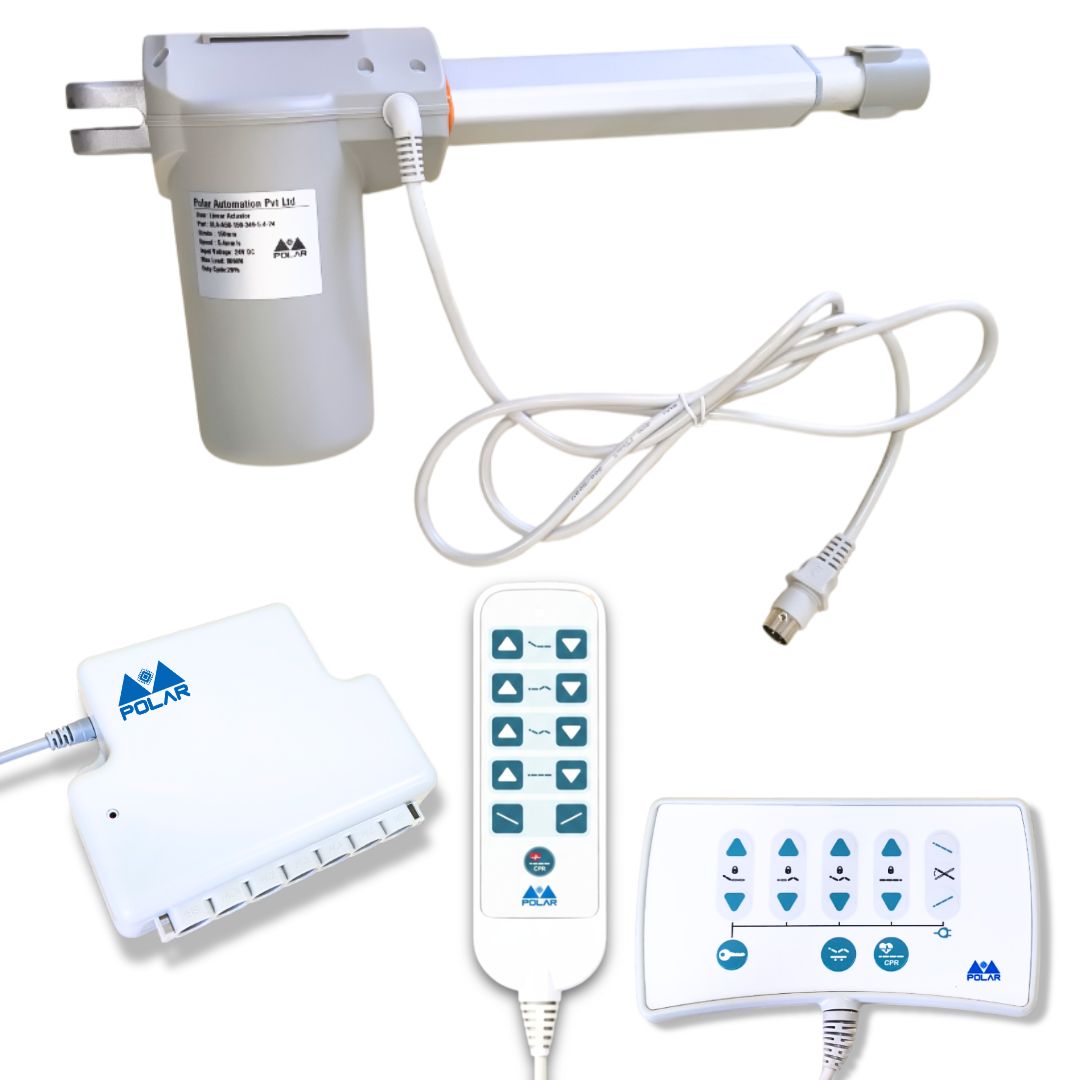

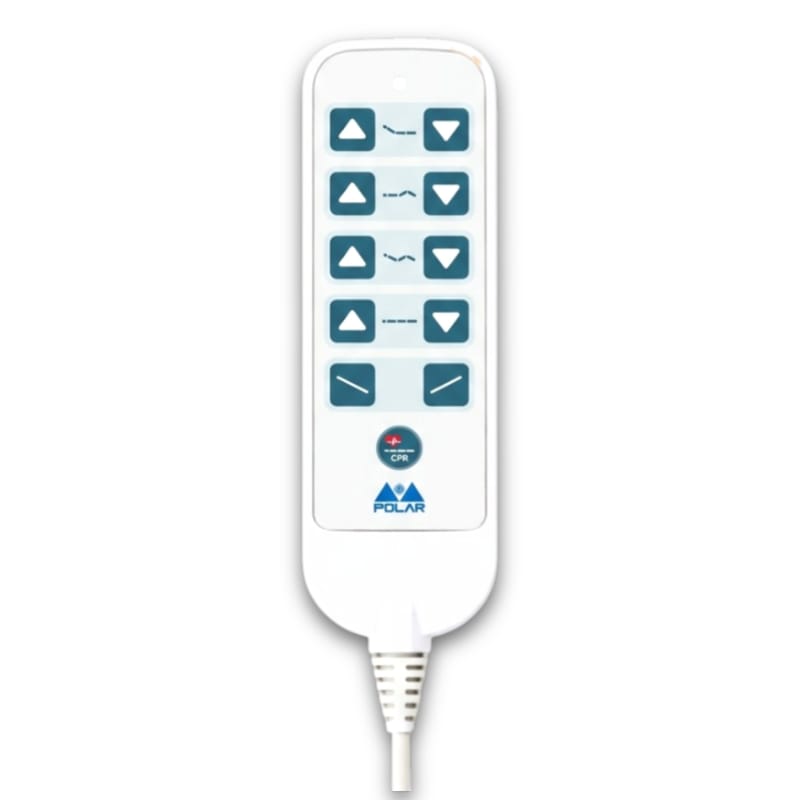

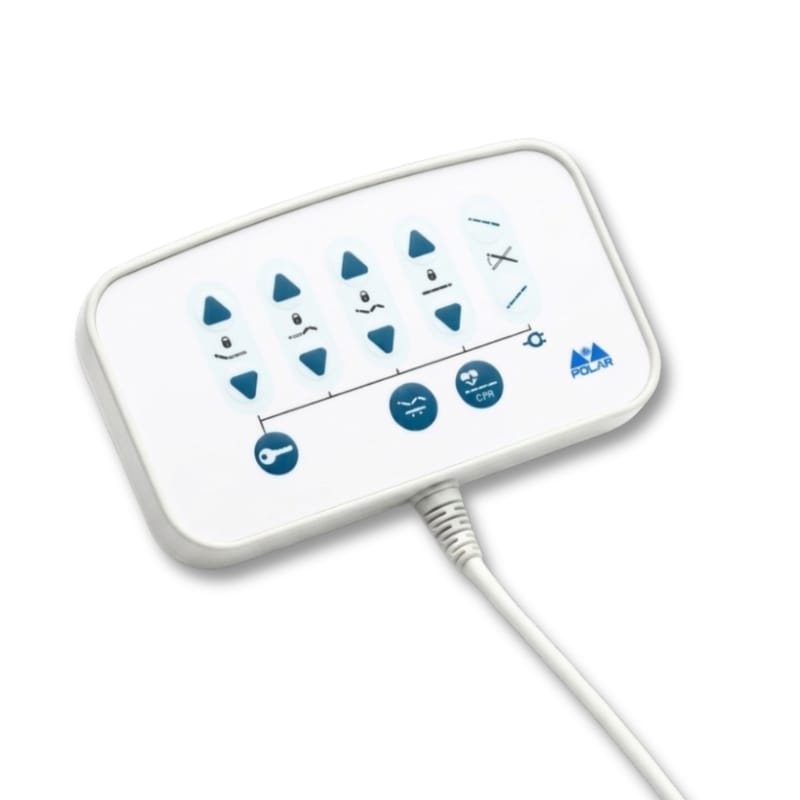

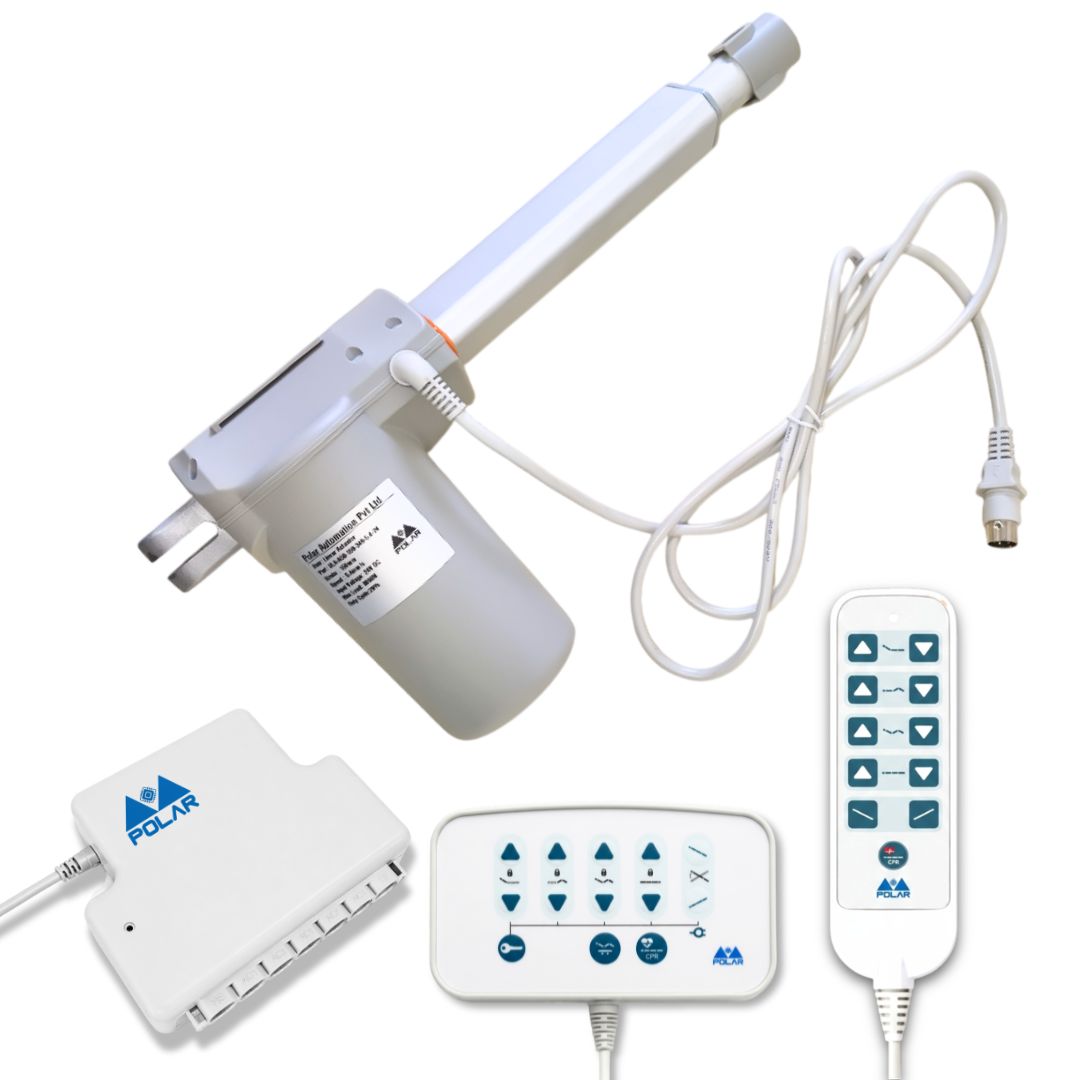

This advanced 5-function actuator system includes dual control access through both a patient handset remote and a nurse control panel. It allows independent and convenient bed adjustment for both patients and healthcare staff.

Designed for hospital-grade applications, it ensures safe, stable, and smooth operation.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 100 mm
• Full Length: 100 mm – 288 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Dual control access for patient and nurse

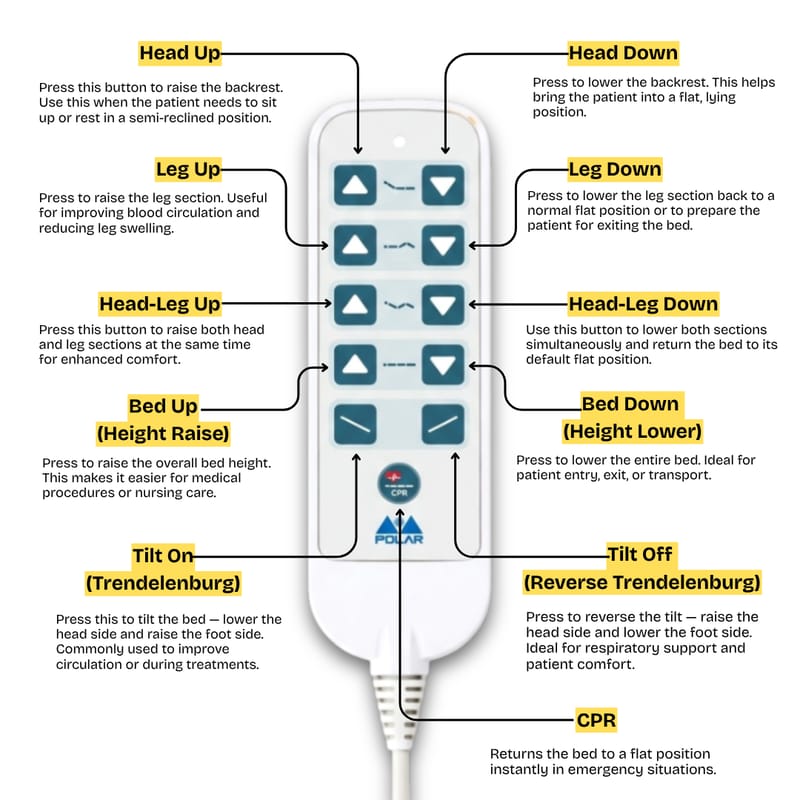

• Independent five-function adjustment
• Quiet and smooth motion
• High durability and reliability
• Ideal for ICU and advanced hospital beds
