Product Overview

This variant offers extended stroke length for enhanced vertical movement and improved flexibility in hospital bed positioning. Designed for heavy-duty applications, it delivers stable and accurate motion control.

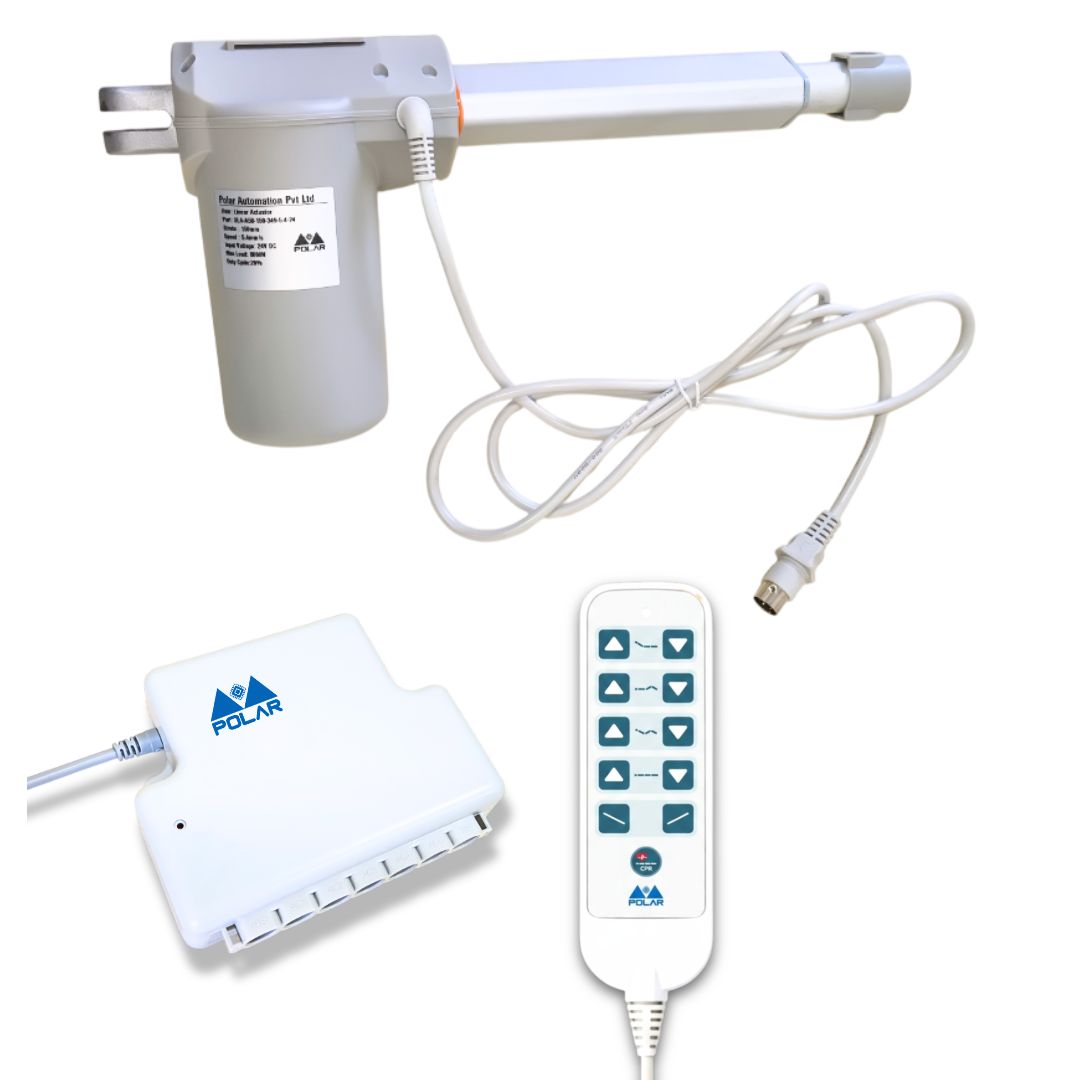

The system includes a linear actuator, control box, and patient handset remote for smooth and efficient bed operation.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 325 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Extended movement range
• Stable and powerful lifting performance
• Smooth and silent operation
• Ideal for advanced ICU and adjustable beds
• User-friendly patient remote control
