Product Overview

This high-speed actuator variant is specially designed for applications requiring faster bed adjustments, including CPR positioning. It provides quick response and smooth transition between positions.

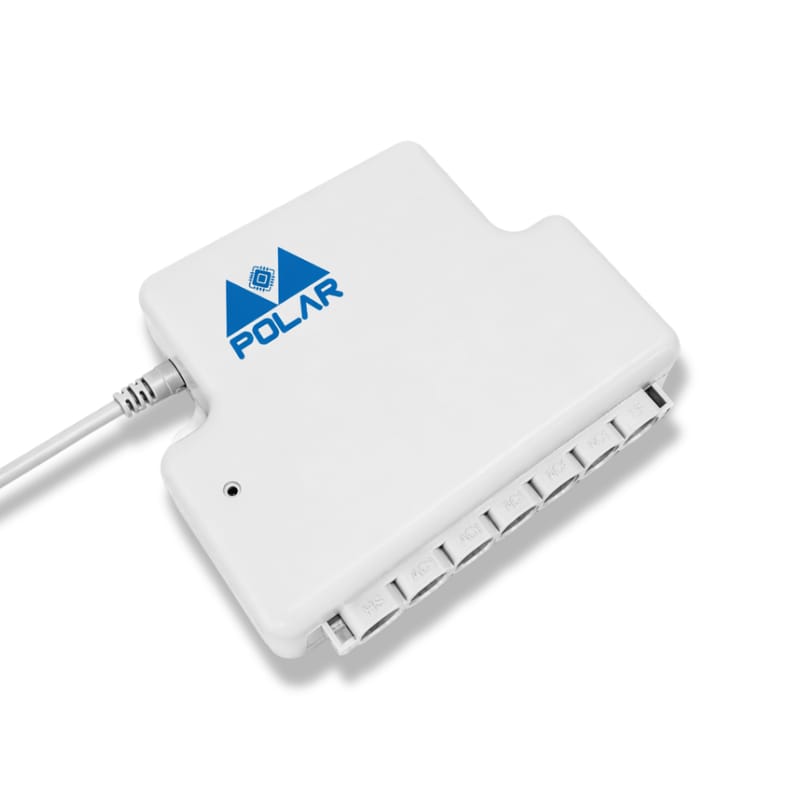

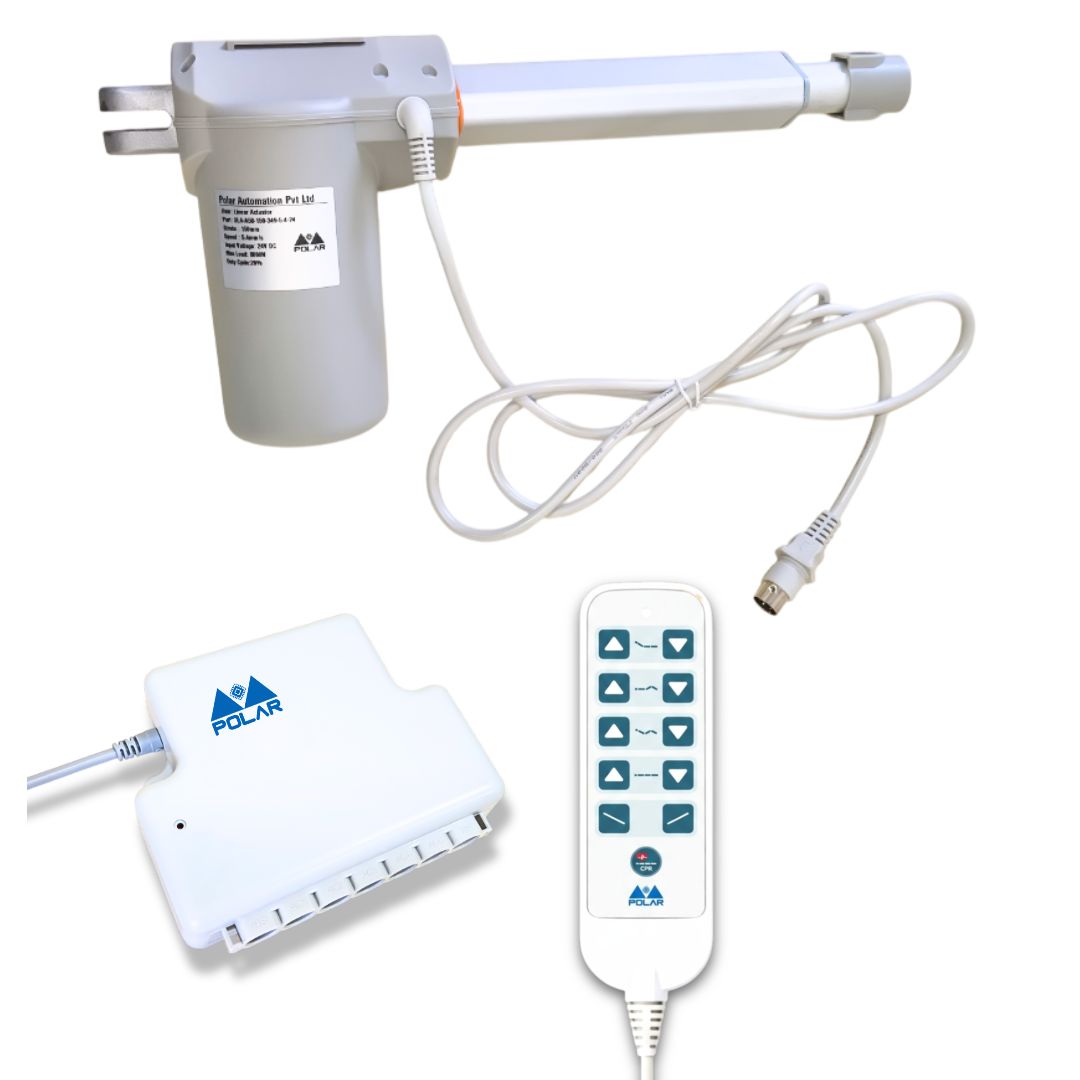

The system includes a linear actuator with cable, control box, and patient handset remote for reliable and efficient performance.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 349 mm
• Maximum Load: 4000 N
• Speed: 8 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Faster movement for emergency positioning
• CPR-compatible configuration
• Smooth and reliable performance
• Compact and efficient design
• Suitable for critical care environments
