Product Overview

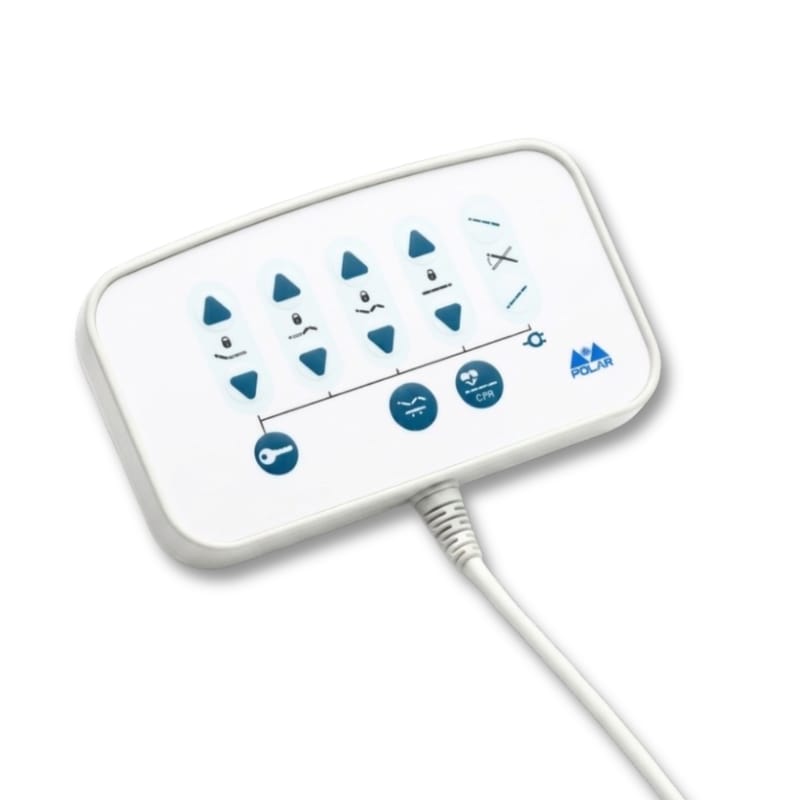

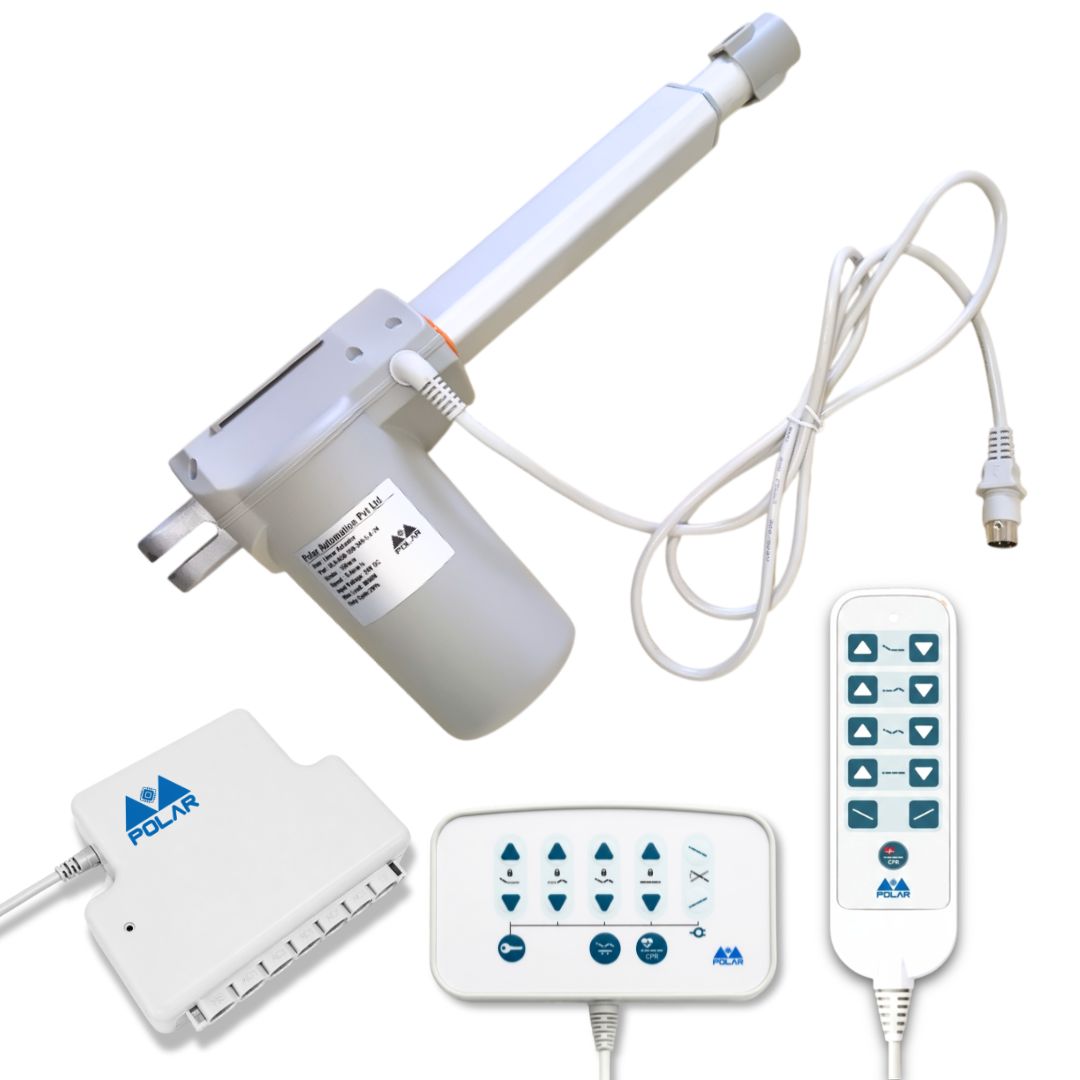

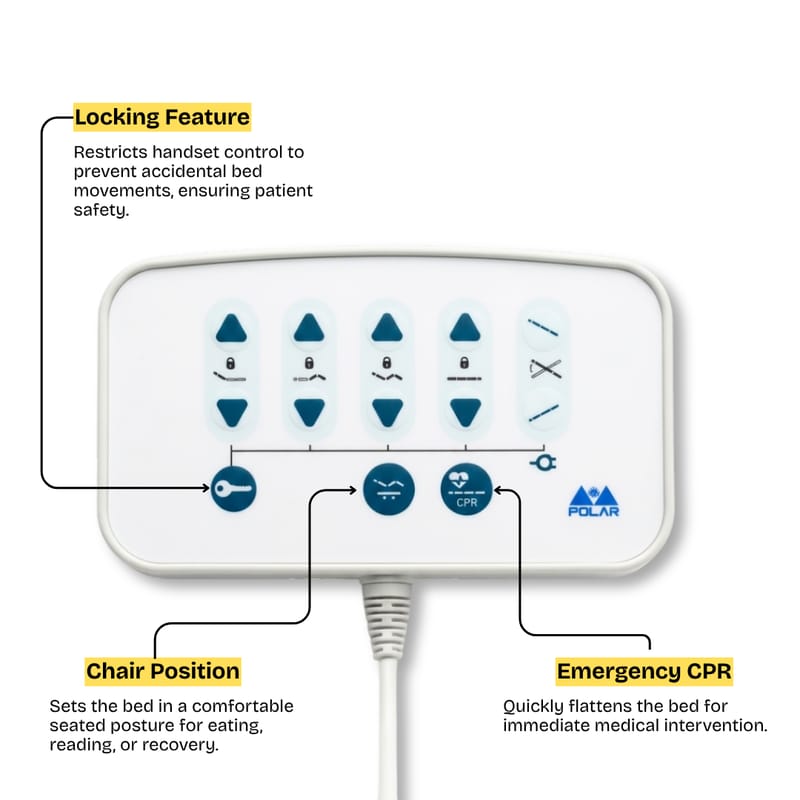

This extended-stroke dual-control system provides enhanced flexibility in patient positioning. It allows both patients and medical staff to control bed adjustments efficiently.

Built for high performance and long-term durability in demanding medical environments.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 325 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Extended movement range
• Dual operation flexibility
• Stable and controlled positioning
• Designed for heavy-duty hospital use
• Enhanced patient comfort
