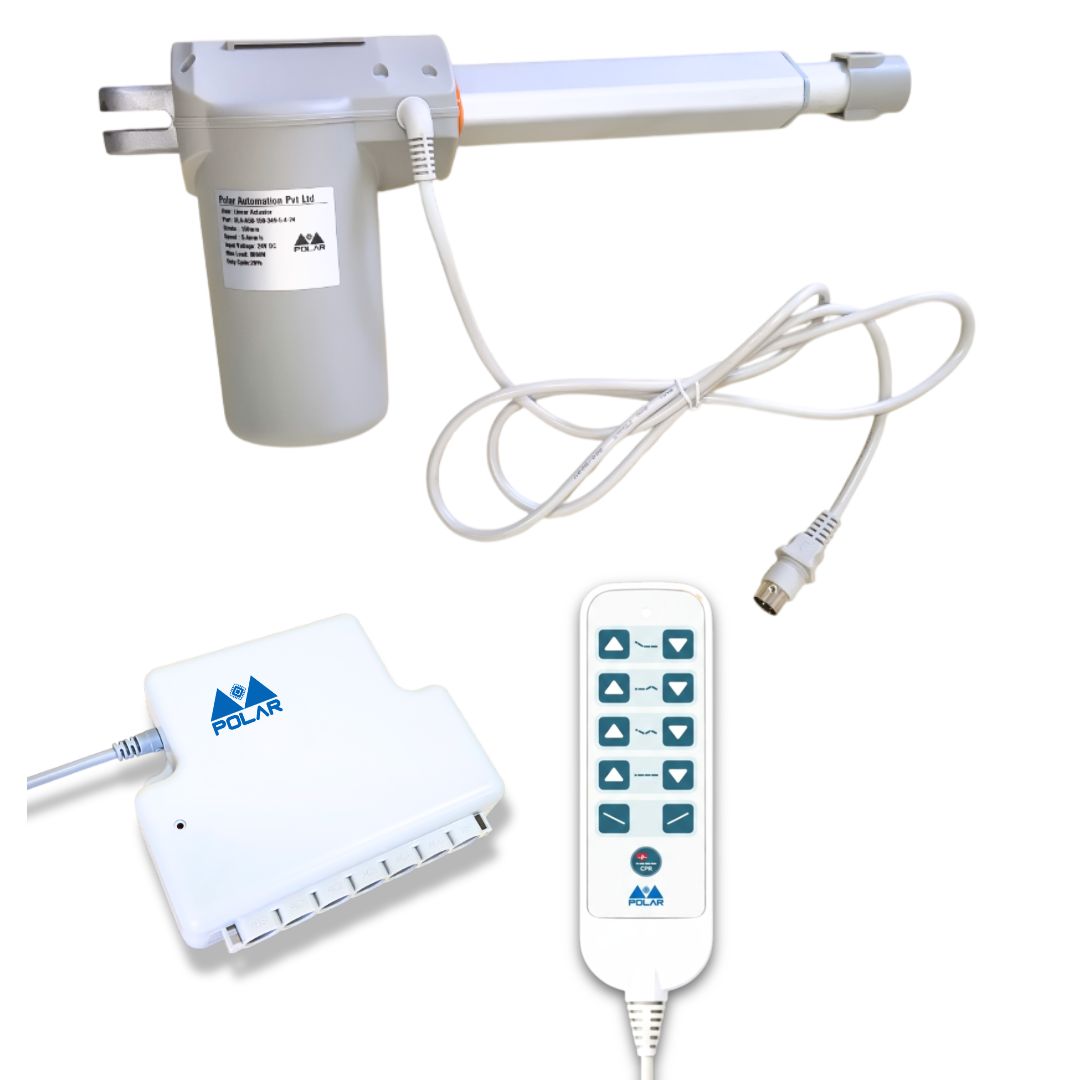

Product Overview

This 5-function hospital-bed linear actuator system is designed for advanced hospital and home-care applications, offering precise and independent control of backrest, leg rest, bed height, tilt, and Trendelenburg/reverse Trendelenburg positions.

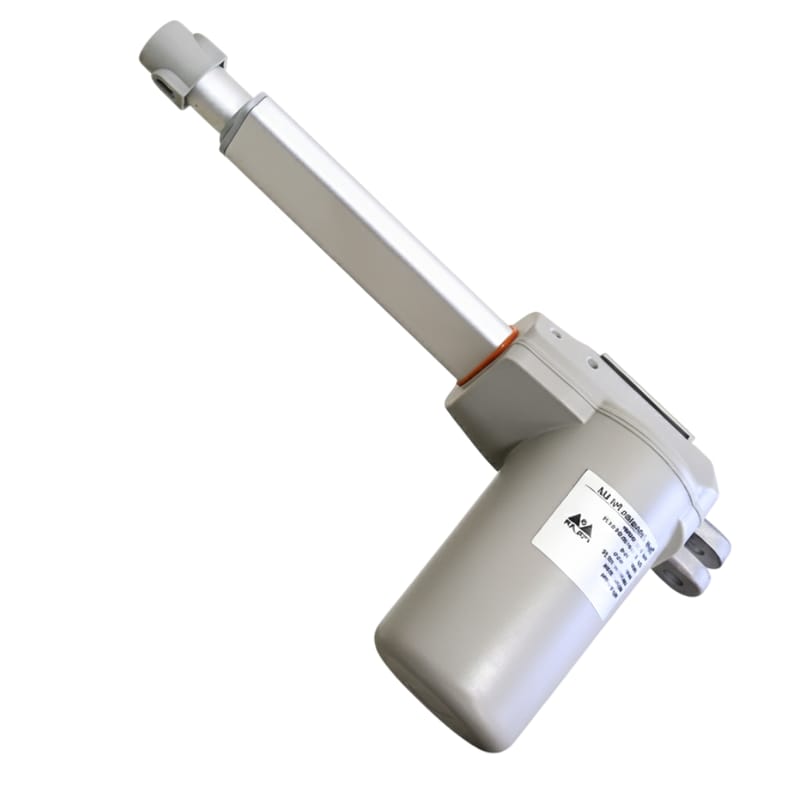

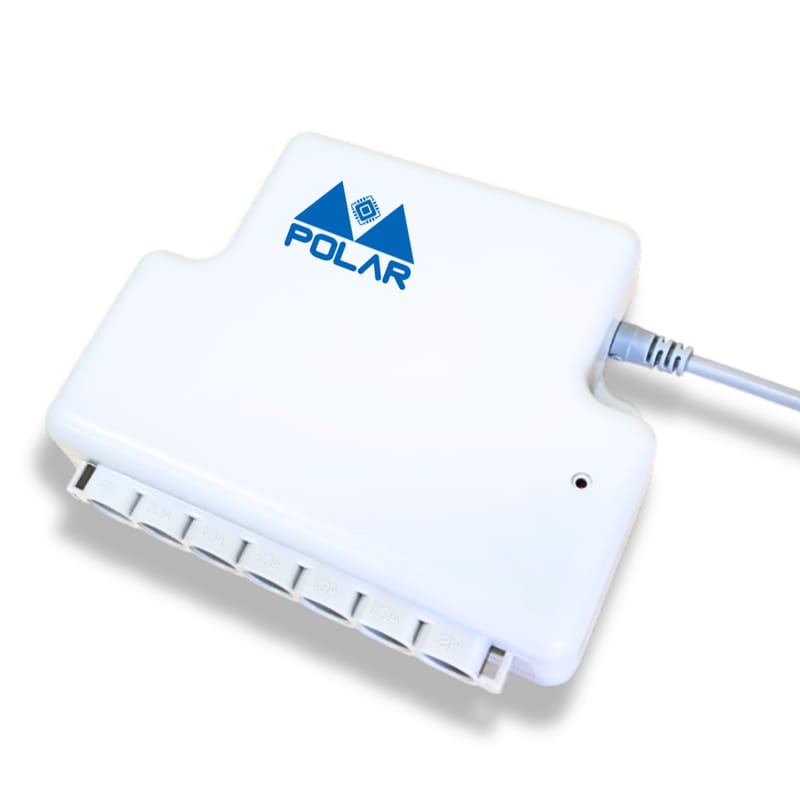

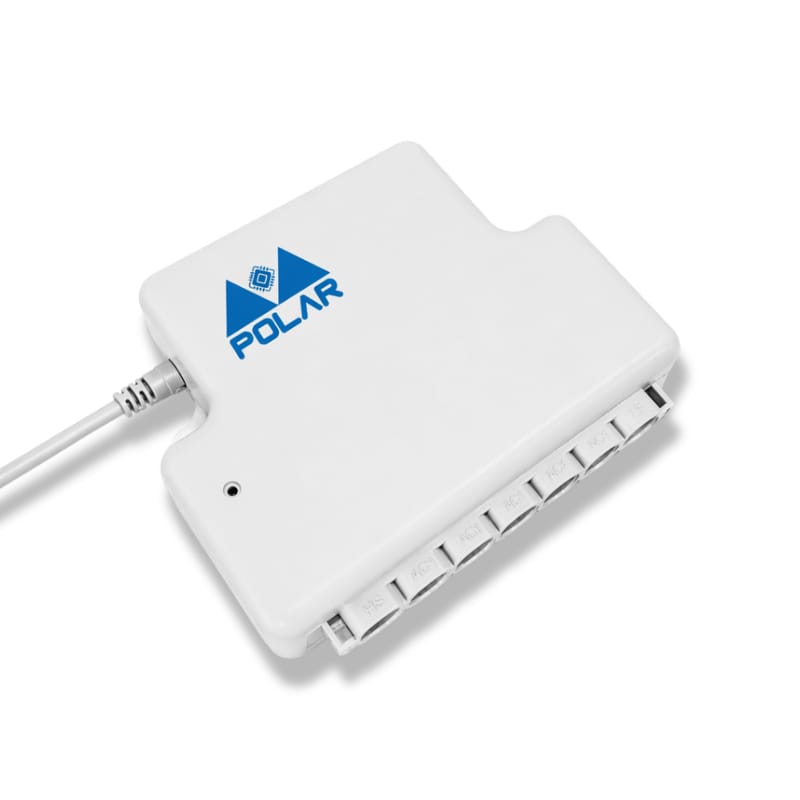

The system ensures smooth, stable, and low-noise operation for enhanced patient comfort and safety. It includes a linear actuator, control box, and patient handset remote for convenient and reliable operation.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 100 mm
• Full Length: 100 mm – 288 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

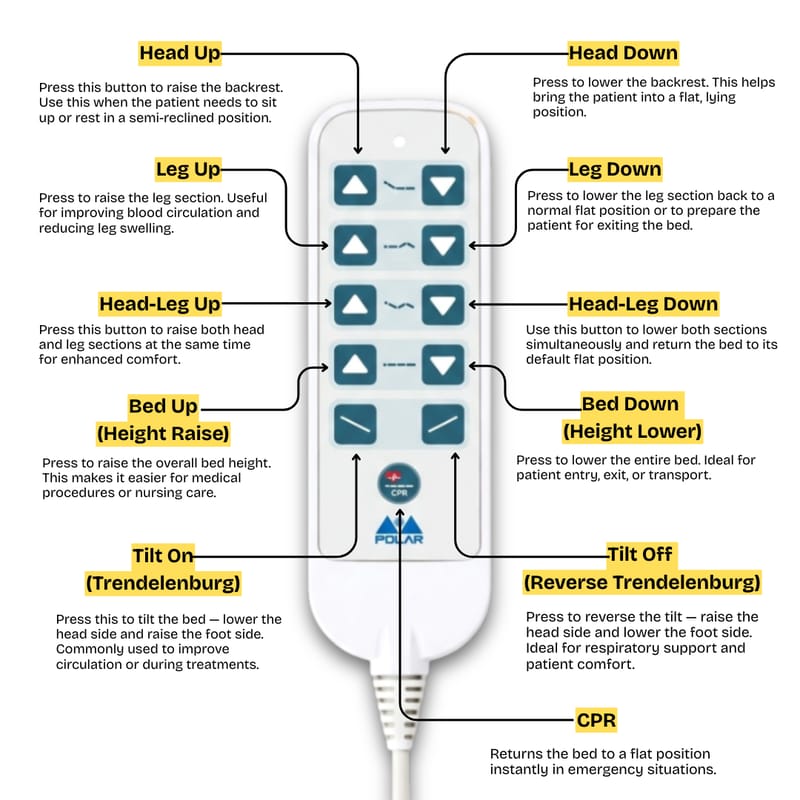

• Independent control of five bed adjustment functions
• Smooth and precise positioning
• Quiet operation for patient comfort
• High load capacity for hospital-grade performance

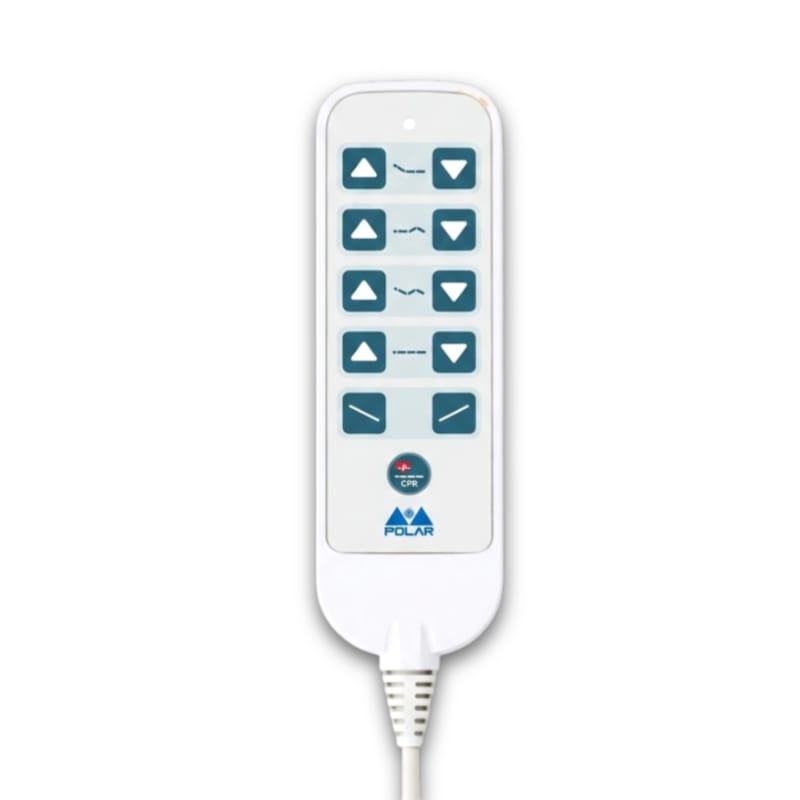

• Easy-to-use patient handset remote
• Reliable and durable construction
