Product Overview

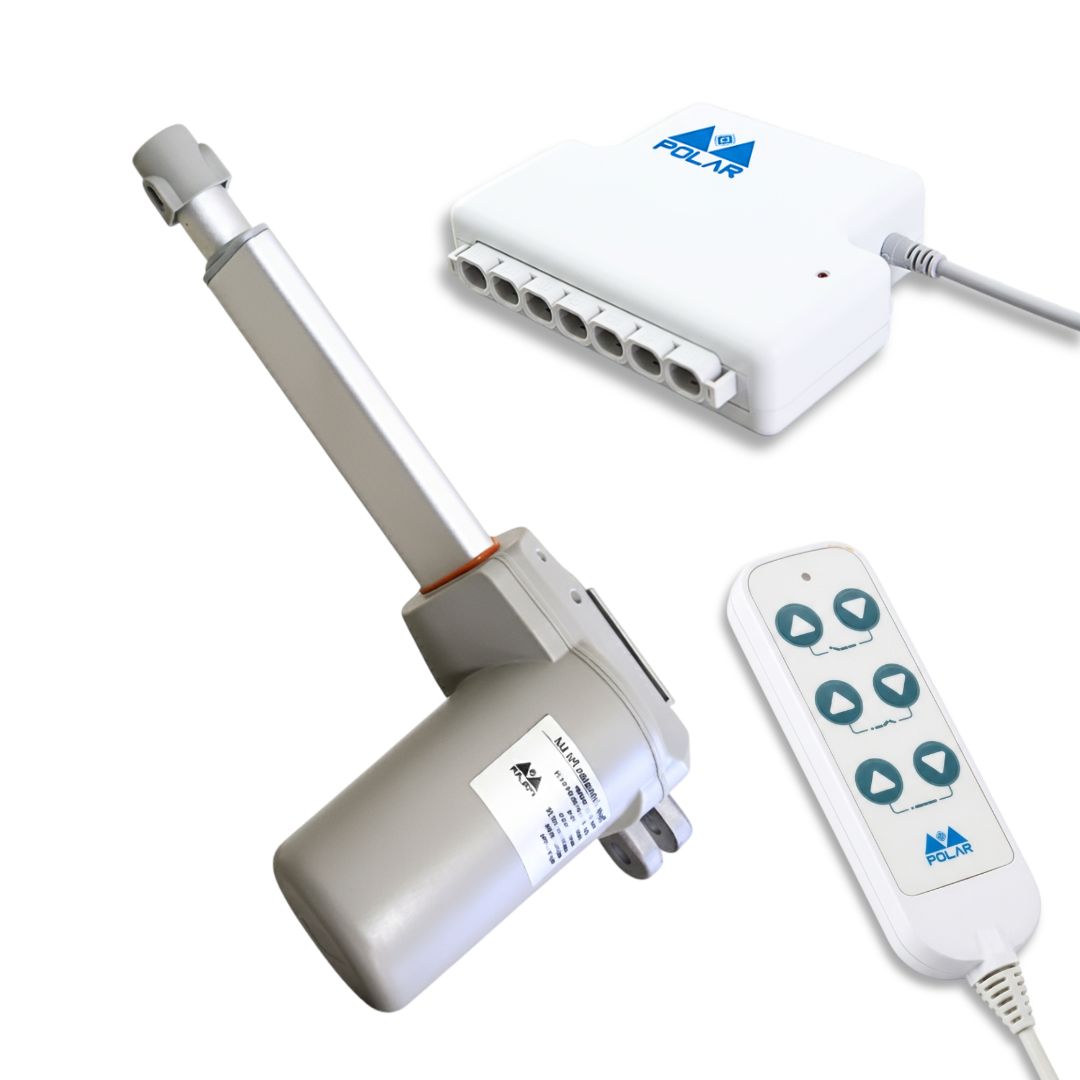

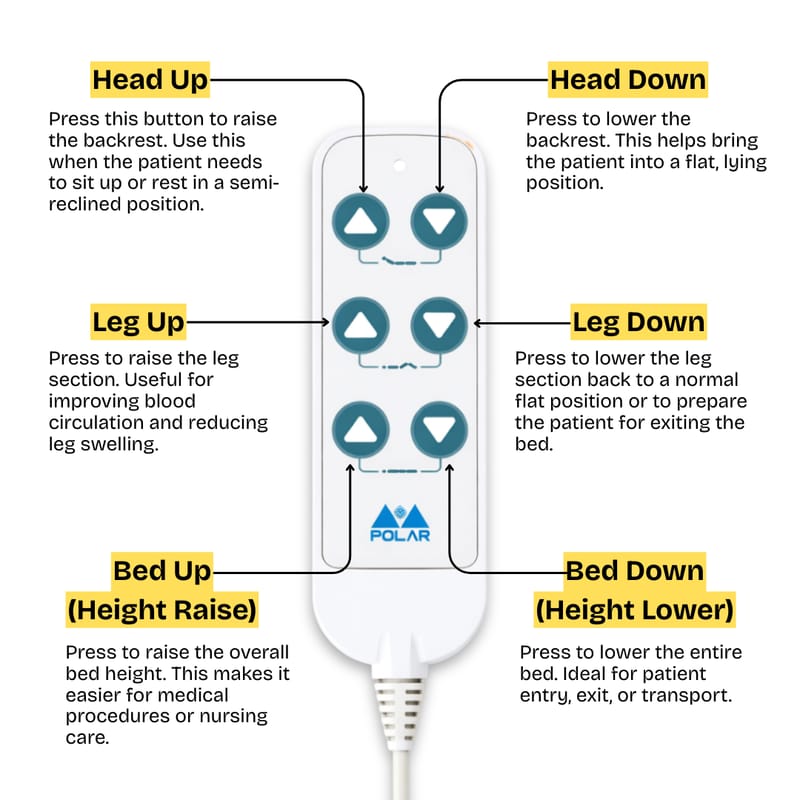

This three-function hospital-bed linear actuator system provides independent movement of the head/back-rest, leg-rest, and bed height or tilt, with an extended stroke length for a wider adjustment range. It ensures smooth, silent, and accurate linear motion, making it suitable for hospital and home-care bed applications. A wired control unit and handset offer dependable and easy operation.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 325 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Extended stroke for improved bed positioning
• Stable and reliable three-function operation
• Smooth and quiet performance
• Integrated safety features

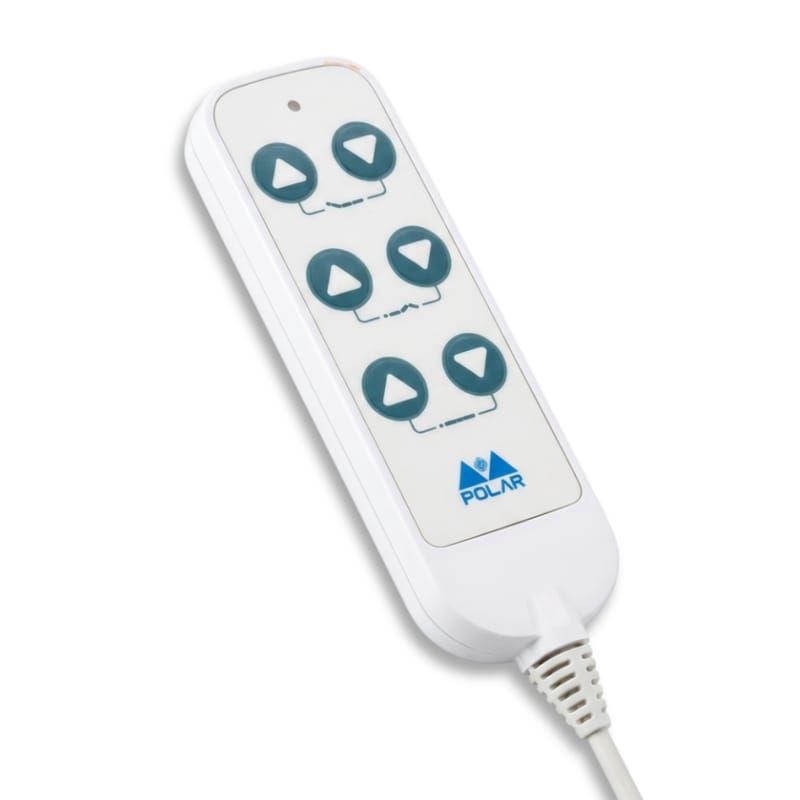

• Simple wired handset control
