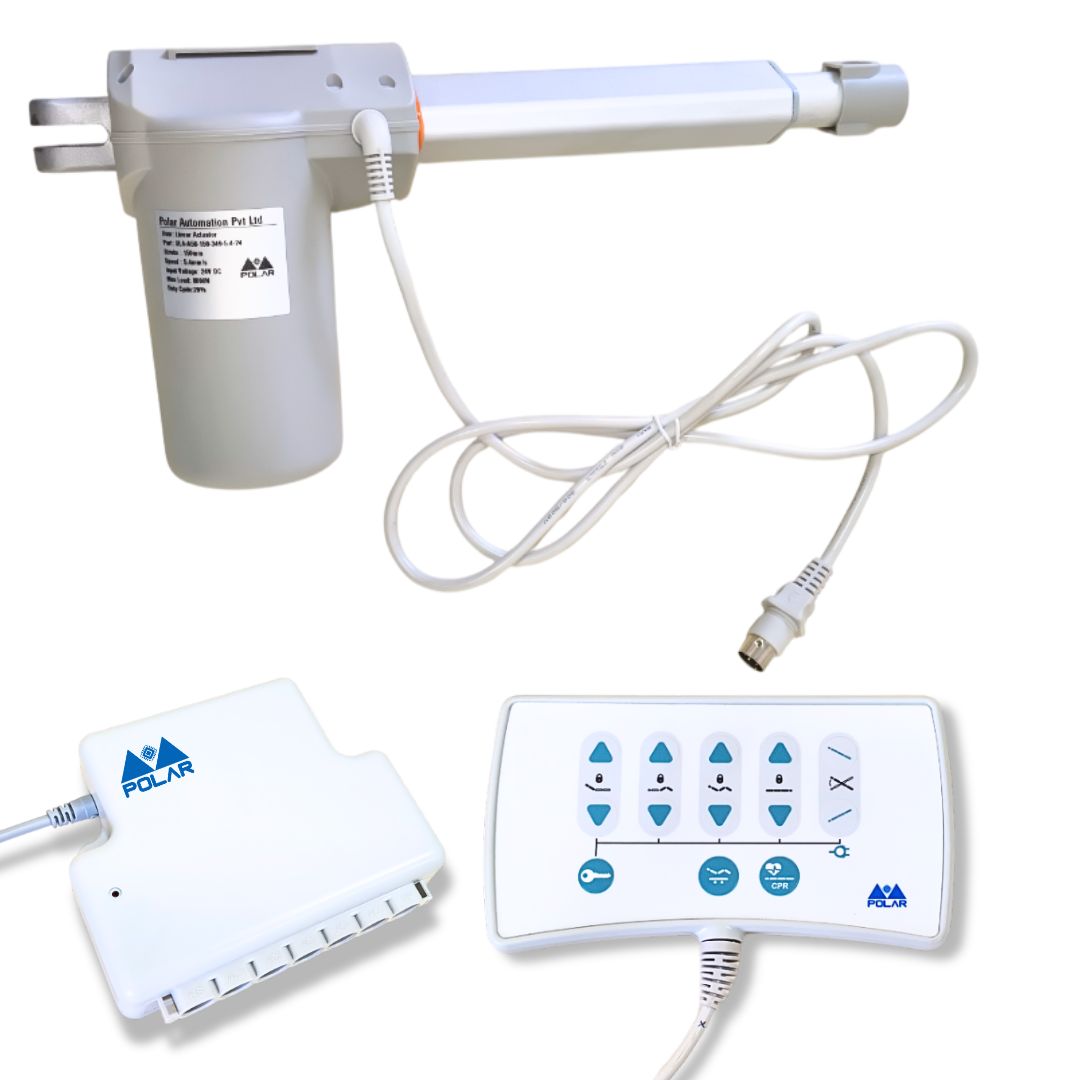

Product Overview

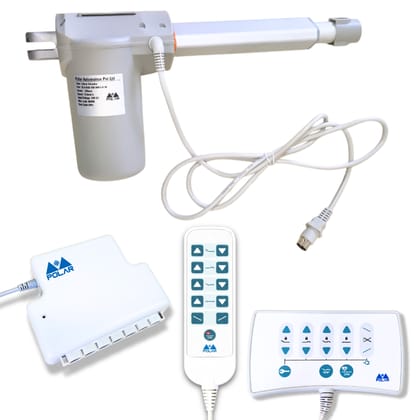

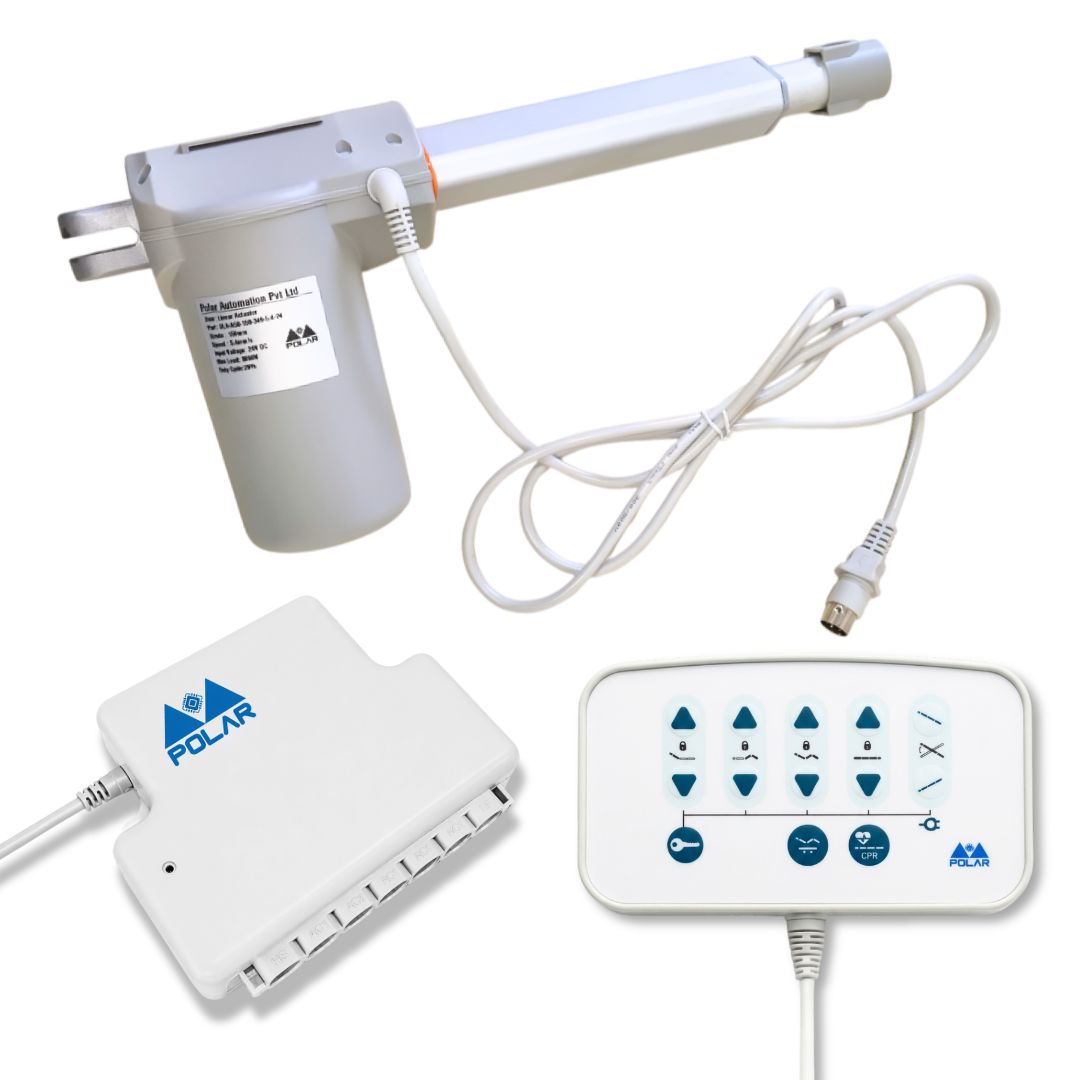

This 5-function hospital bed linear actuator system is designed for smooth and independent adjustment of backrest, leg rest, bed height, tilt, and Trendelenburg/reverse Trendelenburg positions.

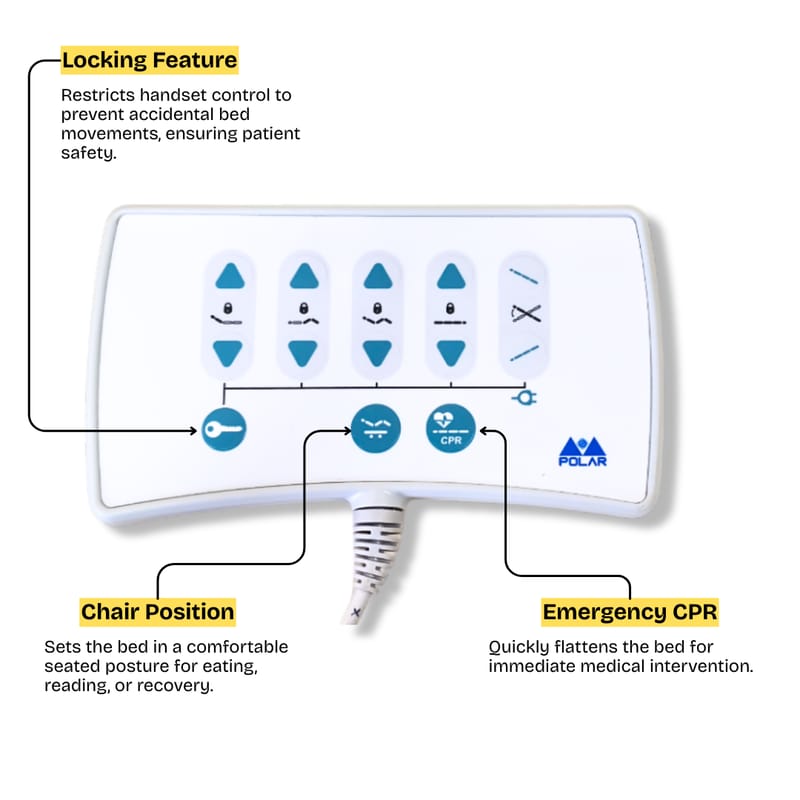

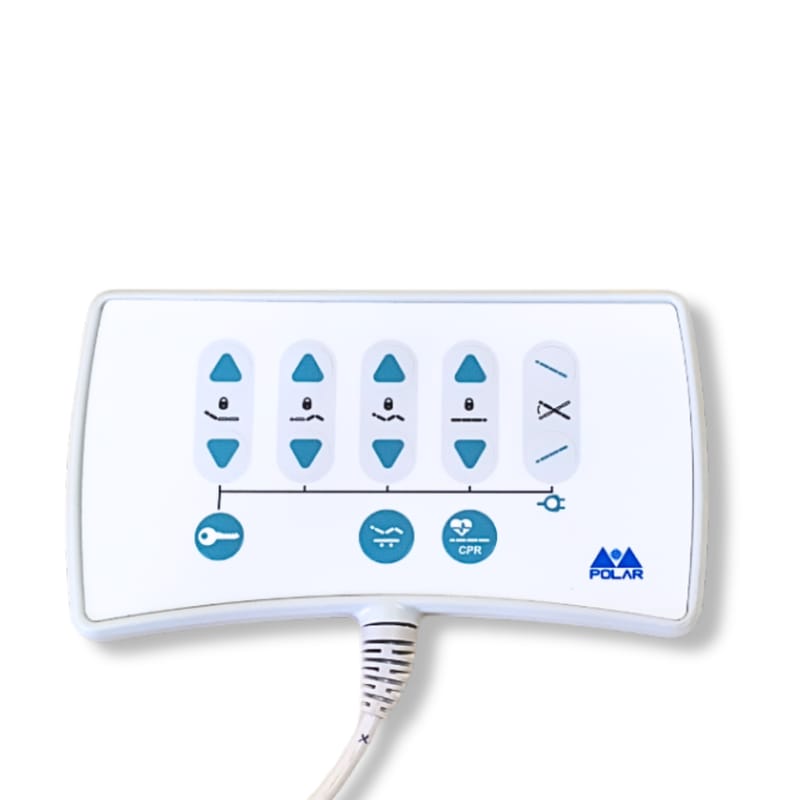

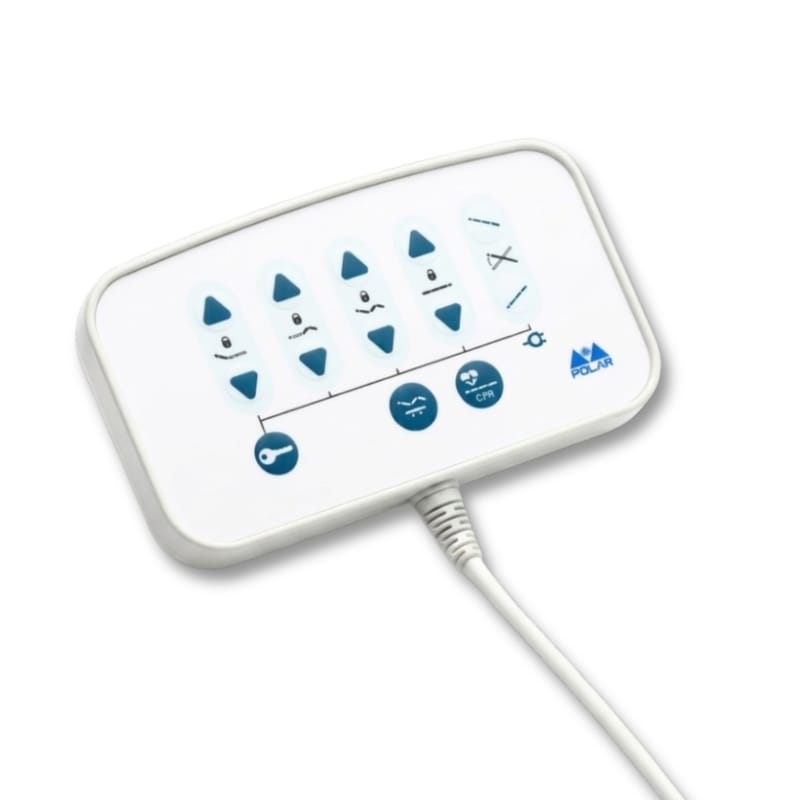

Equipped with a nurse control panel, this system allows medical staff to manage bed movements efficiently and safely. It ensures stable, quiet, and reliable performance for hospital and healthcare environments.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 100 mm
• Full Length: 100 mm – 288 mm
• Maximum Load: 6000 N
• Speed: 4 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Centralized nurse control operation
• Independent adjustment of five bed functions
• Smooth and stable motion
• Low noise performance
• Suitable for ICU and hospital-grade beds
