Product Overview

This high-speed actuator is designed for rapid positioning, especially in emergency situations such as CPR applications. It ensures faster adjustment while maintaining smooth and controlled motion.

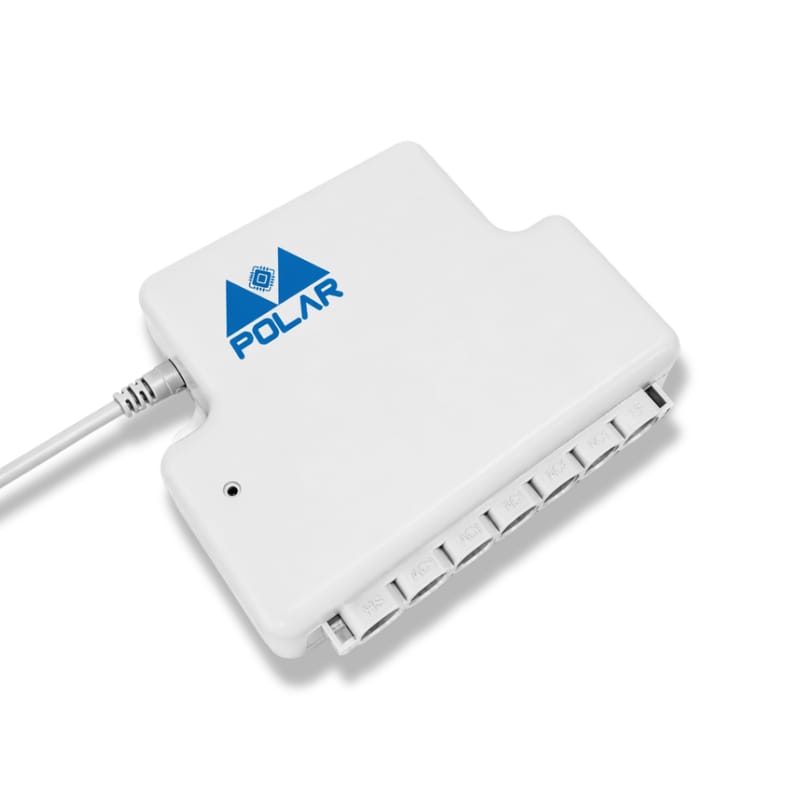

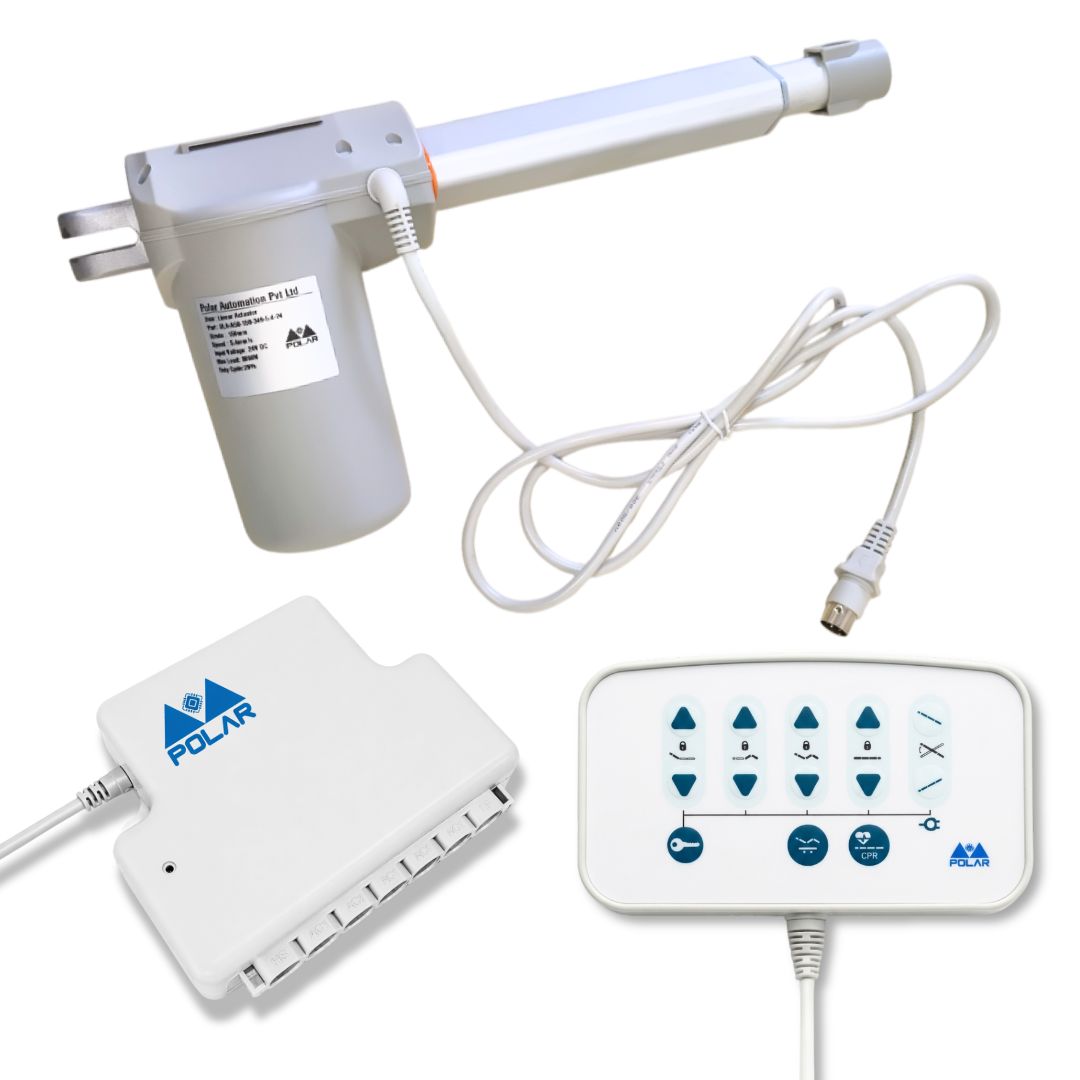

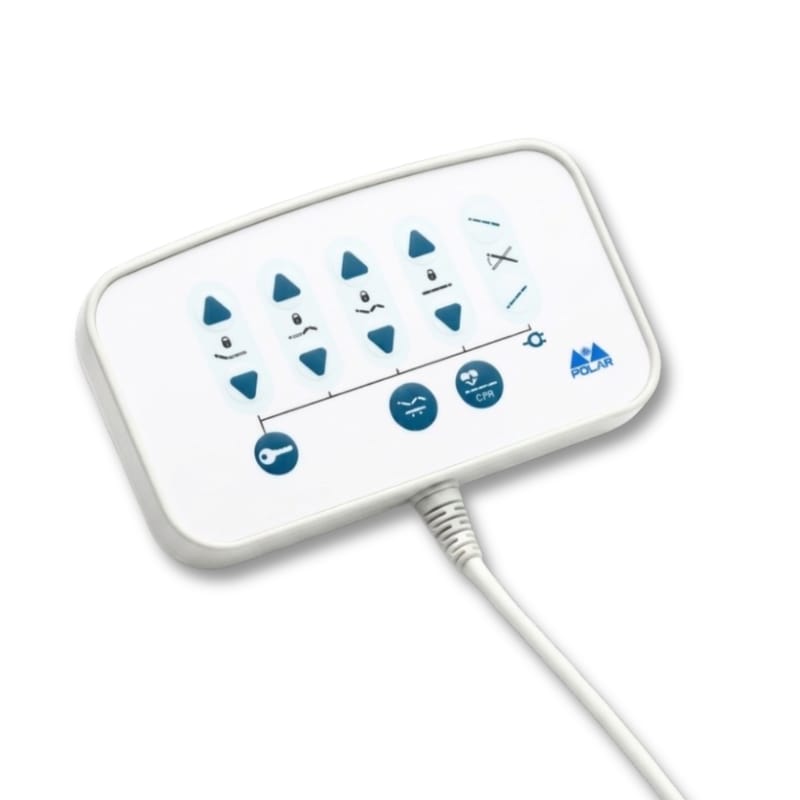

The system includes actuator with cable, control box, and nurse panel for efficient hospital operation.

Technical Specifications

• Power Supply: 24V DC
• Actuator Power Rating: 60 W
• Stroke Length: 150 mm
• Full Length: 150 mm – 349 mm
• Maximum Load: 4000 N
• Speed: 8 mm/s
• Noise Level: ≤ 54 dB
• Duty Cycle: 20%
• Control Method: Manual
• Communication: Wired
• Built-in limit switches
• Overload protection
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (Non-condensing)

Key Benefits

• Faster movement for emergency response
• CPR-compatible configuration
• Smooth and quiet operation
• Reliable for critical care beds
• Compact and efficient design
