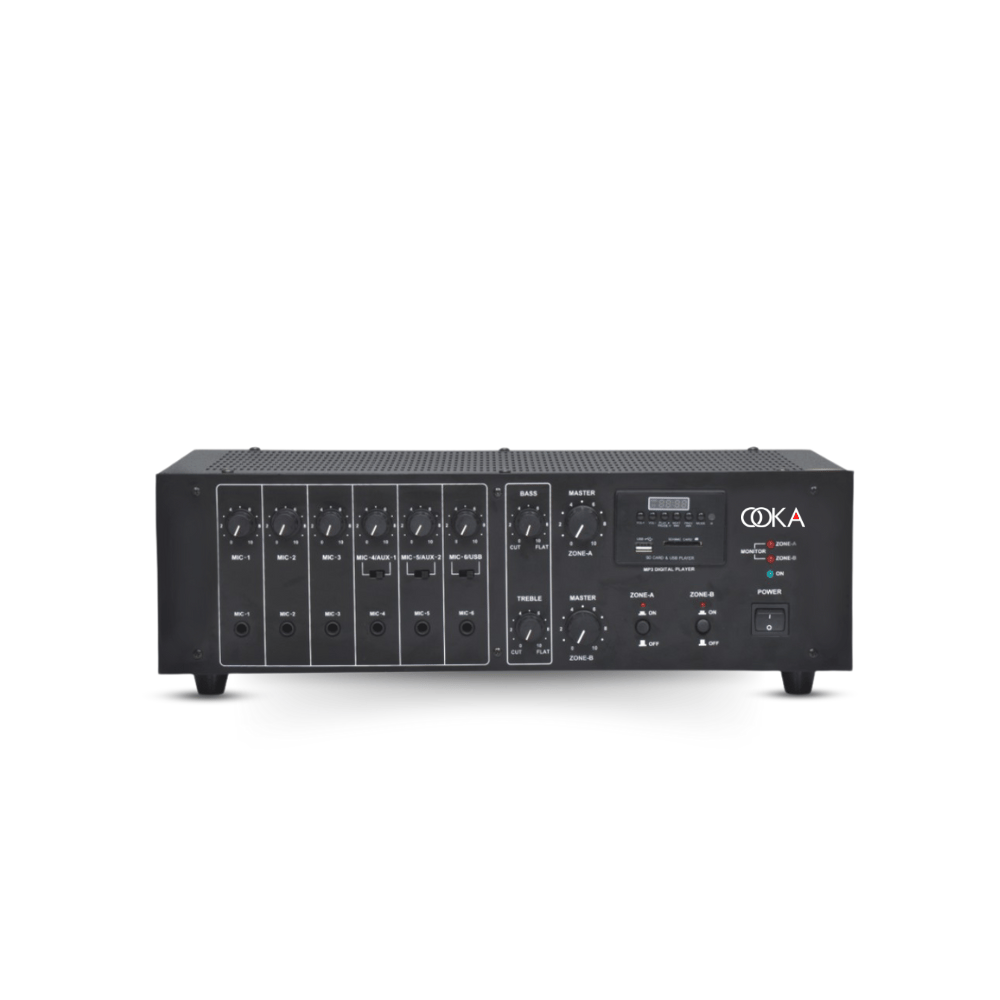

Experience powerful and crystal-clear sound with the OOKA Big Boy Amplifier. With dual zones delivering 100W RMS each, it supports up to 6 mic inputs, MP3 playback via USB/SD/MMC, and a wide frequency response of 65Hz–15kHz. Designed with advanced protection, bass/treble control, and multiple output options, it’s perfect for professional sound setups in auditoriums, events, and commercial spaces. Durable, efficient, and built for nonstop performance.

SPECIFICATIONS

ZONE – A

• Power Output – 100W RMS MAX

• Input Channels – Mic (1-6) 0.6V / 4.7Ω

• Digital Player – MP3 Player with Remote Control (USB, SD, and MMC card reader)

• Frequency Response – 65Hz ~ 15,000Hz ± 3dB

• Signal to Noise Ratio – 60dB

• Tone Controls – Bass: -10dB at 100Hz

• Preamp Output – 200mV / 600Ω

• Line Output – 1V / 1kΩ

• Output Taps – 4 & 8Ω (for direct connections)

• Speaker Matching – 70 & 100V Line (for use with LMT)

• Power Supply – AC: 220~240V 50/60Hz, DC: 12V (1 x 12V Car Battery)

• Protection – AC: Fuse 2Amp. (T 2A L), DC: Fuse 2x10Amp. (T 10A L) each Zone

• AC Power Consumption – 300VA

• DC Power Consumption – 3A

• Net Weight – 14.5kg (approx.)

ZONE – B

• Power Output – 100W RMS MAX

• Frequency Response – 65Hz ~ 15,000Hz ± 3dB

• Signal to Noise Ratio – 60dB

• Tone Controls – Bass: -10dB at 100Hz

• Output Taps – 4 & 8Ω (for direct connections)

• Speaker Matching – 70 & 100V Line (for use with LMT)
