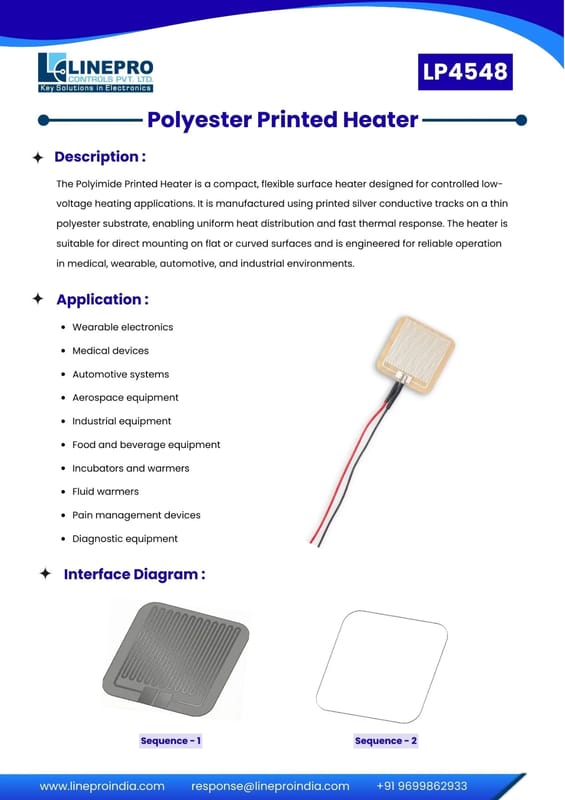

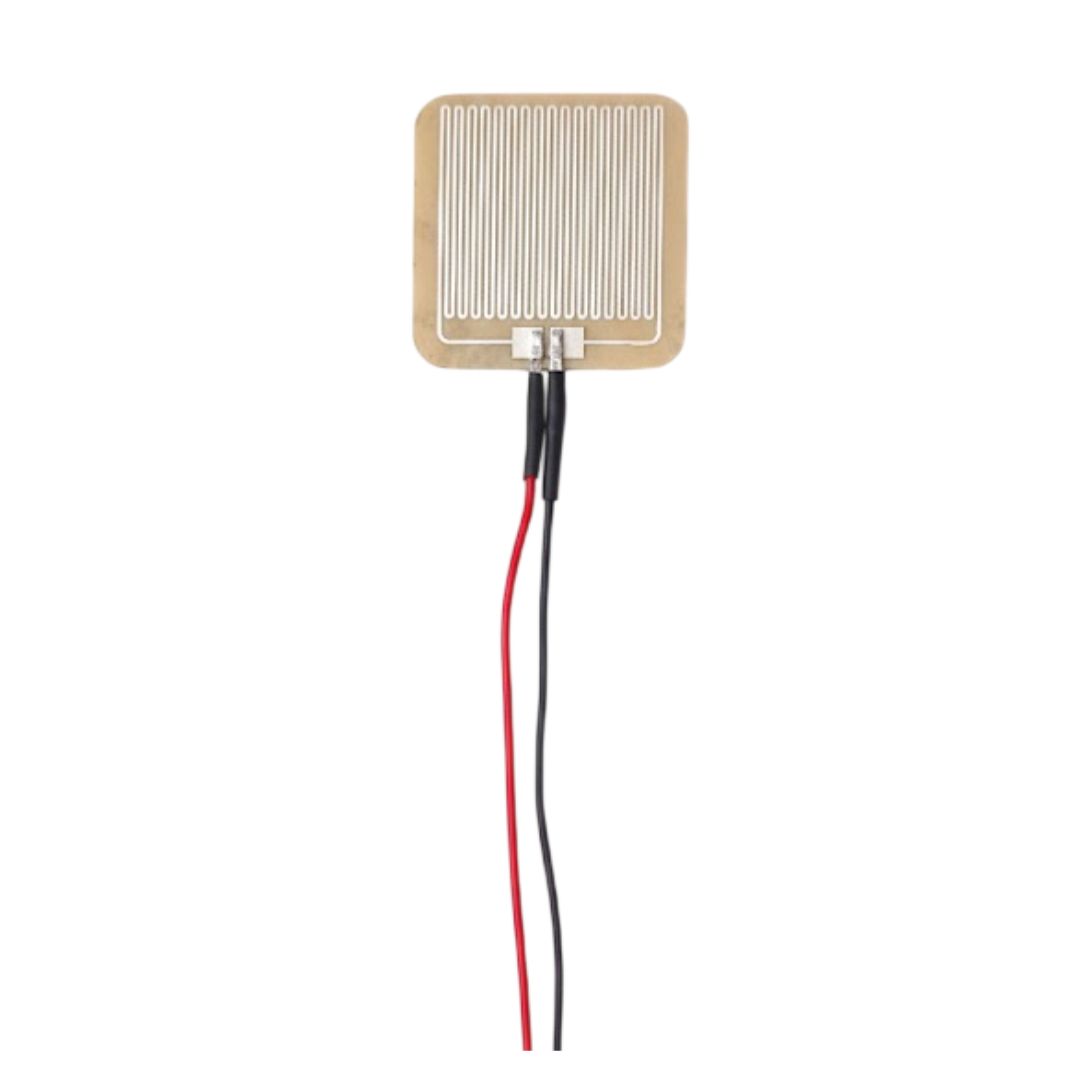

Product Description:

The LP4548 Polyester Printed Heater is a compact, ultra-thin flexible heater designed for precise low-voltage heating applications. Built using printed silver conductive tracks on a durable polyester substrate, it delivers fast, uniform heat distribution with excellent reliability. Ideal for flat or curved surfaces, this heater is widely used in medical, wearable, automotive, aerospace, and industrial equipment where controlled and efficient heating is essential.

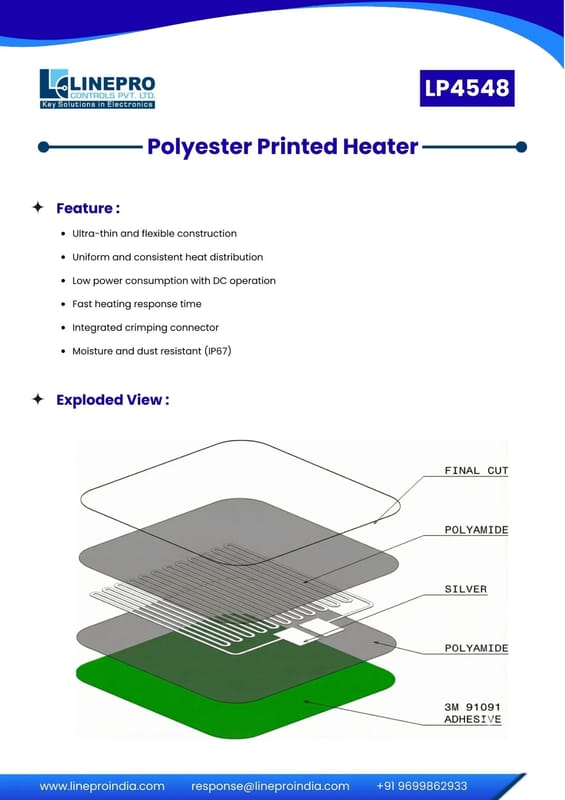

Key Features:

• Ultra-thin and flexible polyester construction
• Uniform and consistent heat distribution
• Fast heating response (under 2 minutes)
• Low-power DC operation (5V–12V)
• Integrated crimping connector for easy installation
• Moisture and dust resistant (IP67 rated)
• Long operational life of 4–5 years

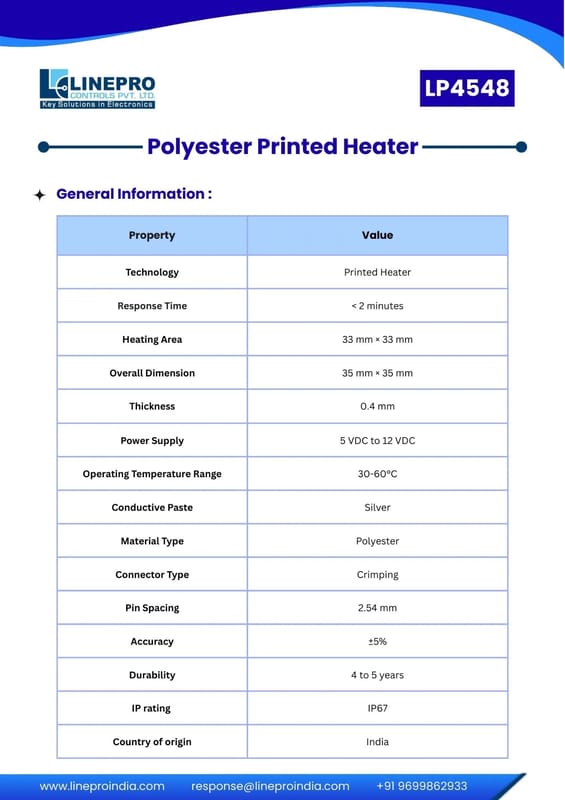

Product Details:

• Technology: Printed Heater

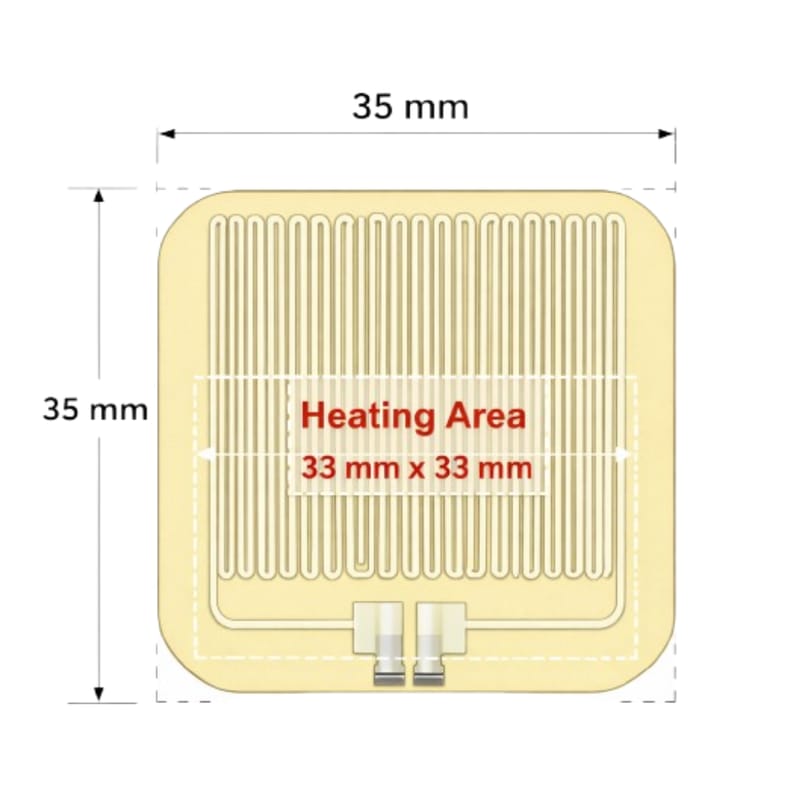

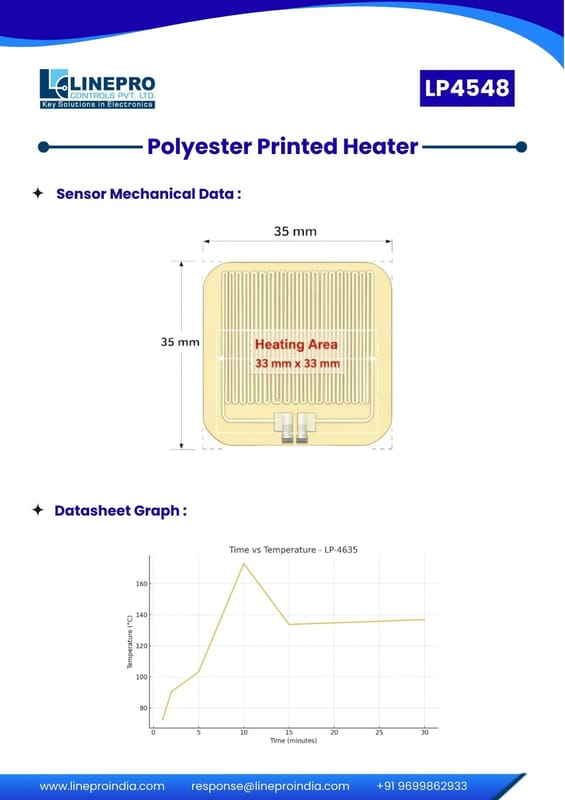

• Heating Area: 33 mm × 33 mm
• Overall Dimensions: 35 mm × 35 mm
• Thickness: 0.4 mm
• Operating Voltage: 5 VDC to 12 VDC
• Temperature Range: 30°C to 60°C
• Conductive Paste: Silver
• Substrate Material: Polyester
• Connector Type: Crimping
• Pin Spacing: 2.54 mm
• Accuracy: ±5%
• IP Rating: IP67
• Expected Life: 4–5 years
• Country of Origin: India
