Product Description:

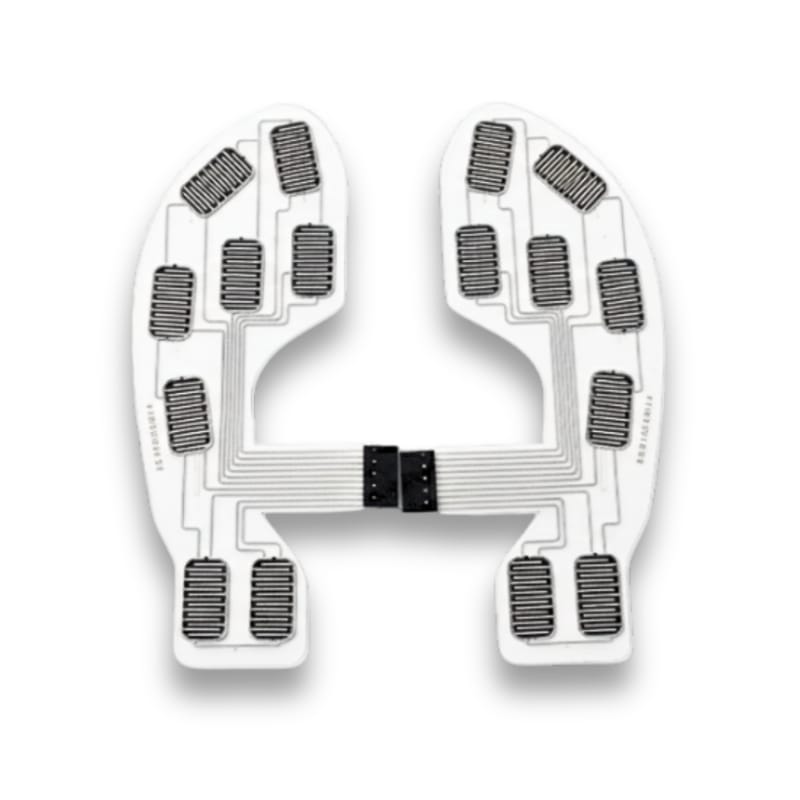

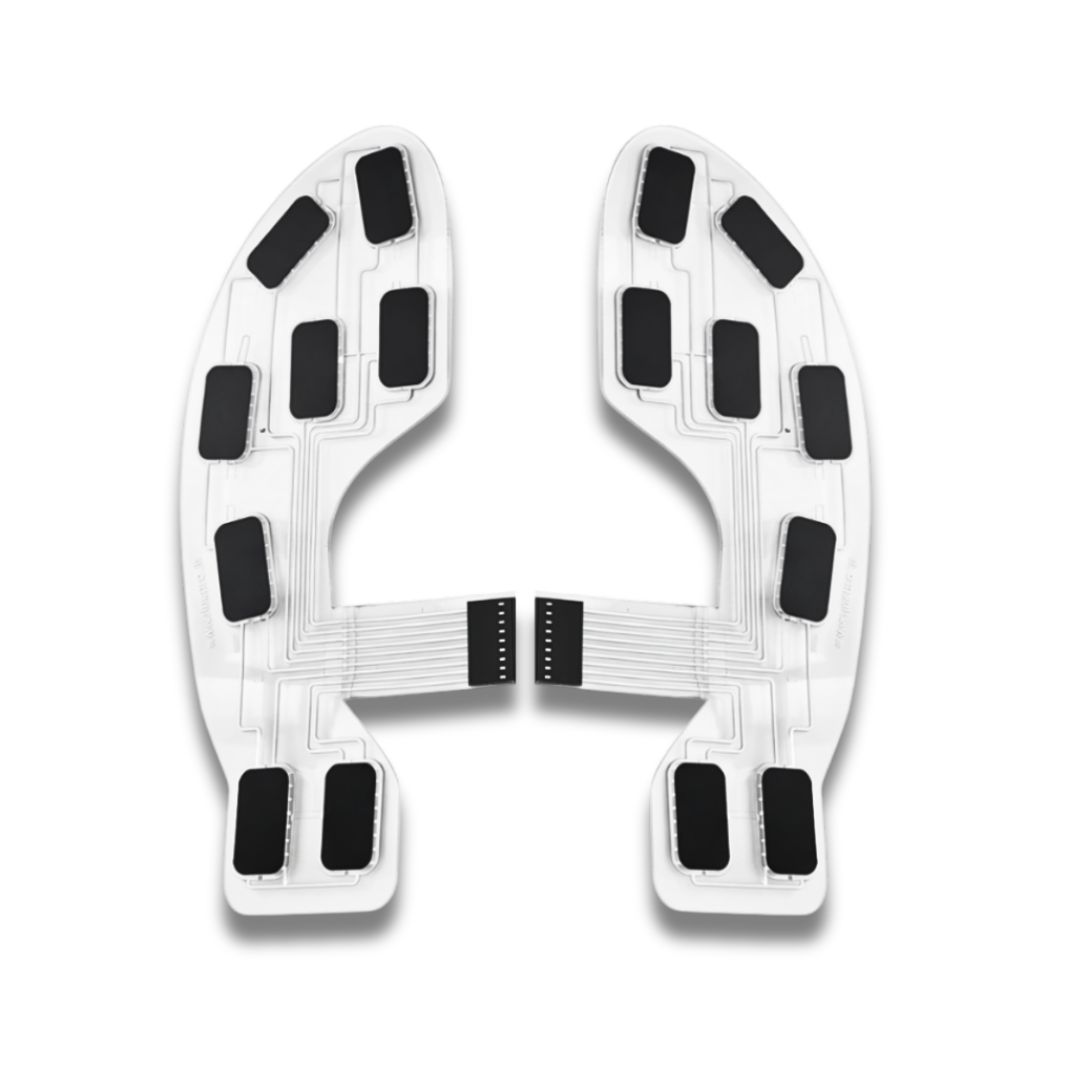

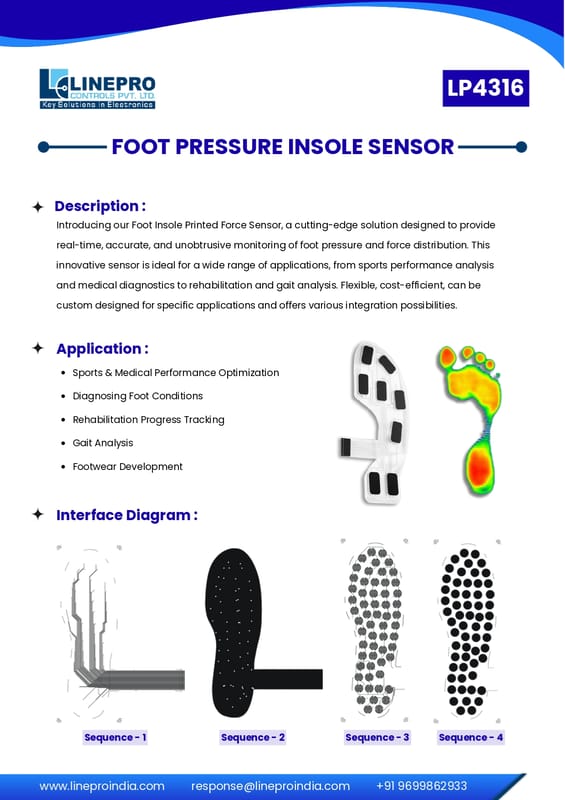

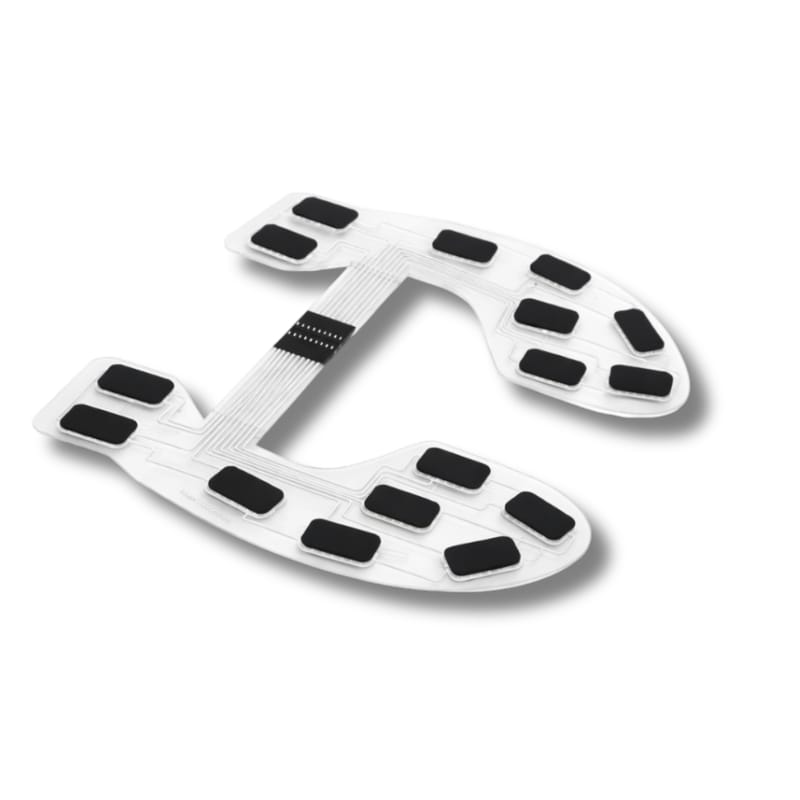

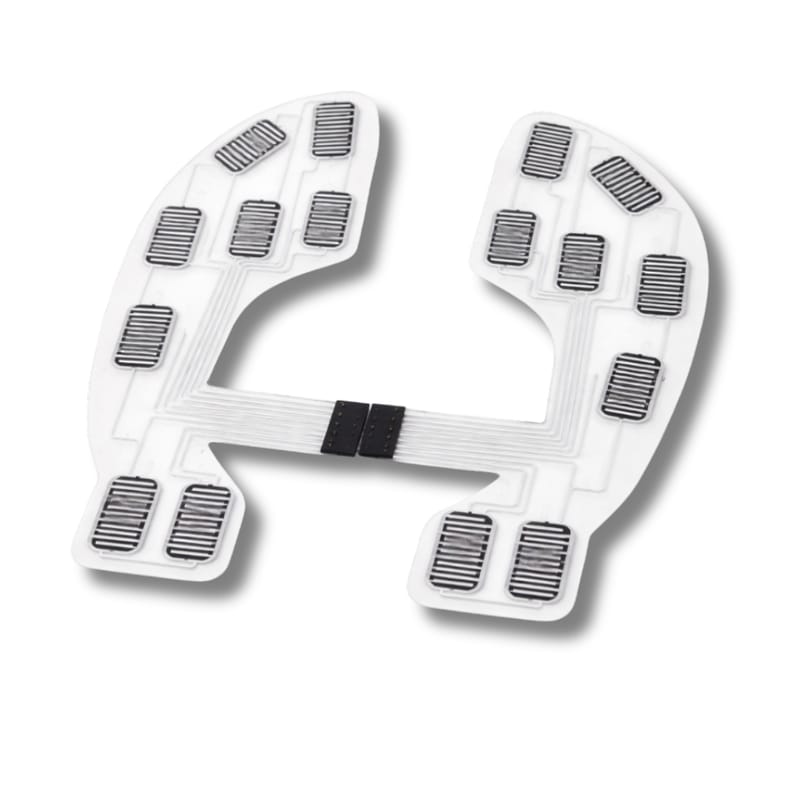

The LP4316 Foot Pressure Insole Sensor is an ultra-thin, flexible FSR-based printed sensor with 59 sensing points for measuring foot pressure and force distribution. It provides continuous analog output, supports loads from 400 g to 50 kg, and responds within 1 ms. Built on a PET substrate with silver and carbon layers, it is 0.385 mm thick, IP67 rated, and suitable for gait analysis, rehabilitation, and sports monitoring.

Key Feature:

• FSR-based printed insole pressure sensor
• 59 sensing points for multi-zone pressure detection
• Ultra-thin and flexible construction (0.385 mm)
• Continuous analog pressure output
• Fast response time of 1 ms
• Lightweight and comfortable for in-shoe applications

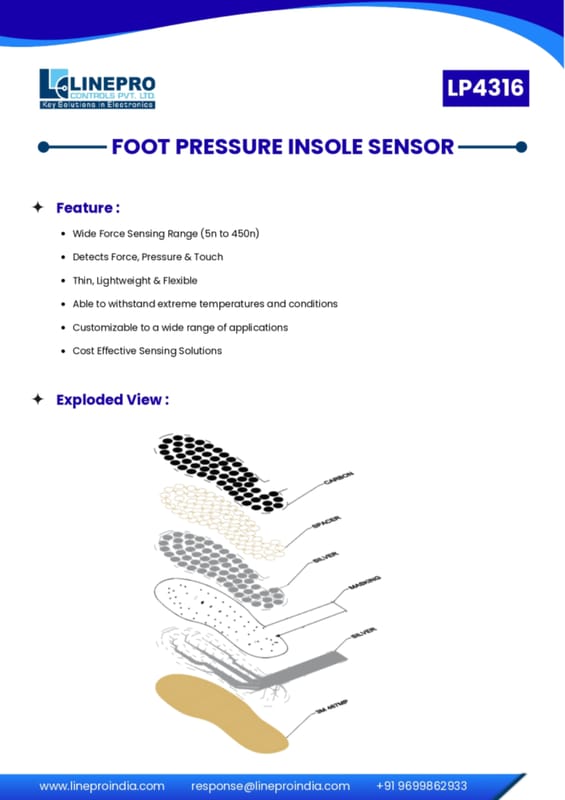

• Durable PET material with silver and carbon layers
• IP67 rated for dust and water resistance
• Long operational life (>100,000 cycles)

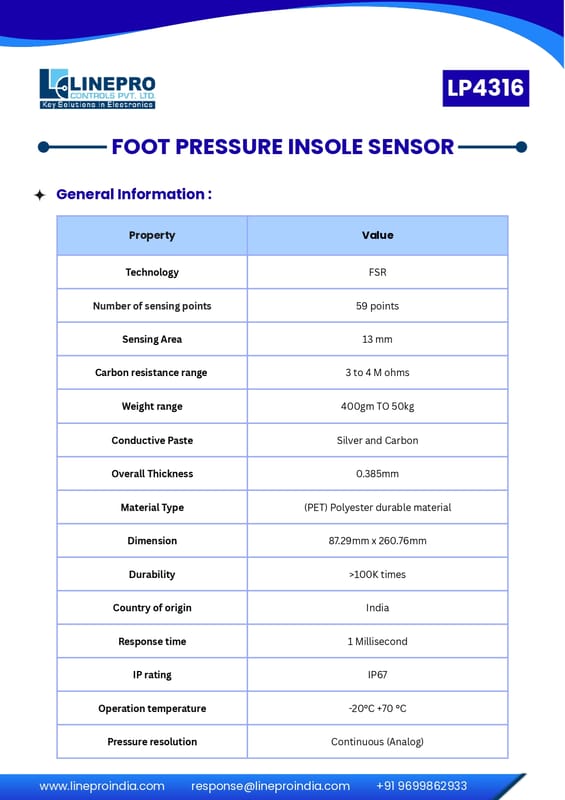

Product Deatils:

• Model: LP4316
• Technology: Force Sensitive Resistor (FSR)
• Number of sensing points: 59
• Sensing area: 13 mm
• Force detection range: 400 g to 50 kg
• Carbon resistance range: 3–4 MΩ
• Output type: Continuous analog
• Response time: 1 millisecond
• Overall thickness: 0.385 mm
• Material: PET (Polyester)
• Conductive paste: Silver and Carbon

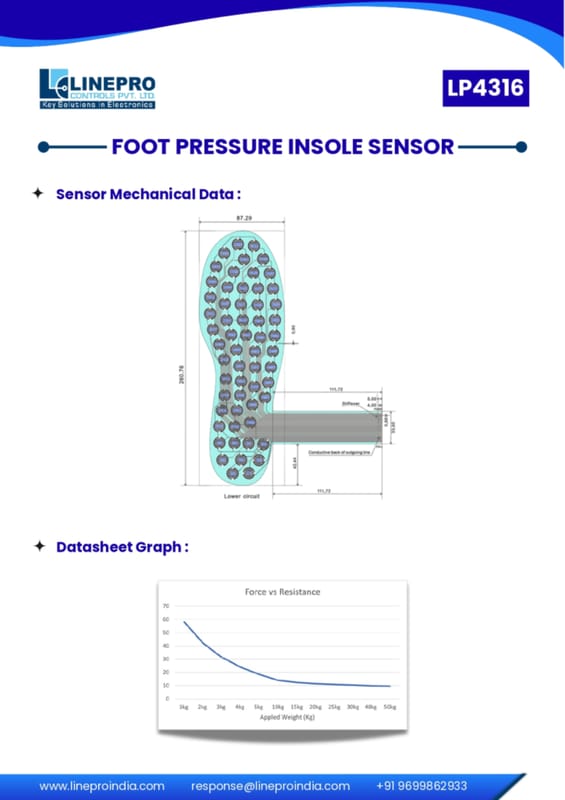

• Dimensions: 87.29 mm × 260.76 mm
• Durability: More than 100,000 operations
• Operating temperature: -20°C to +70°C
• IP rating: IP67
• Country of origin: India
