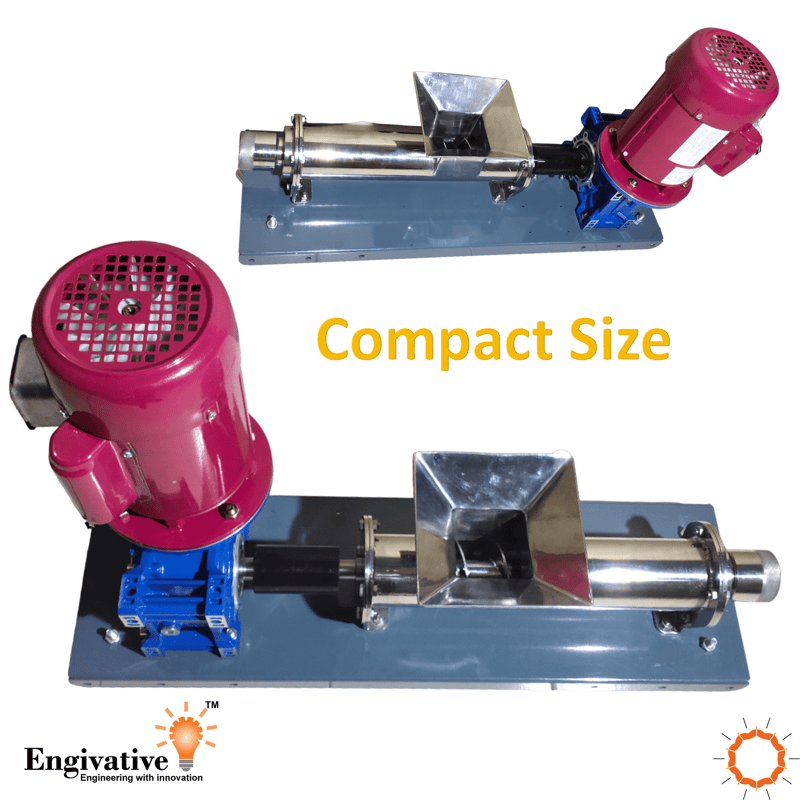

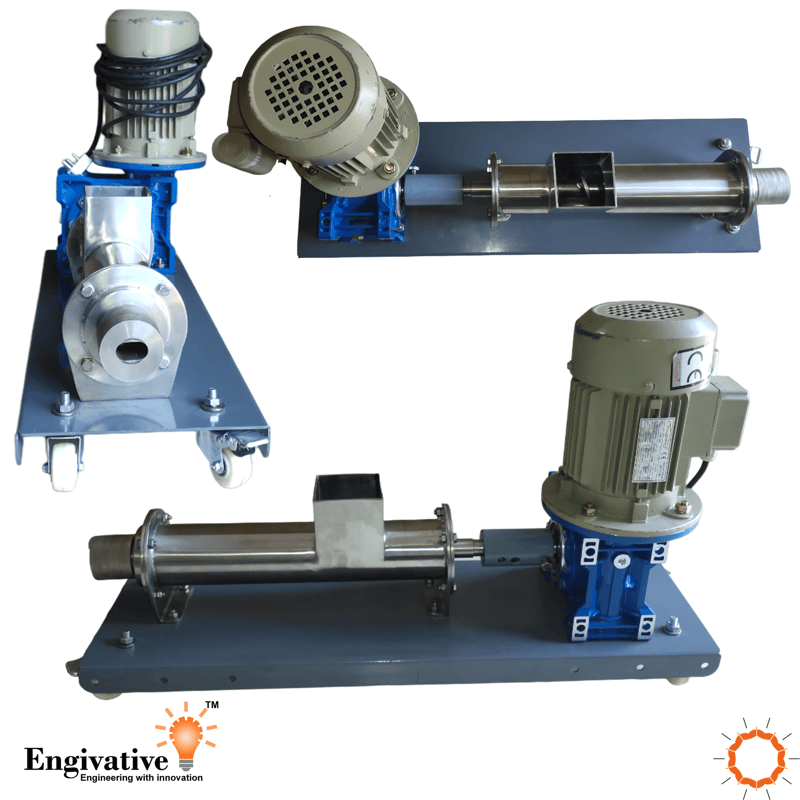

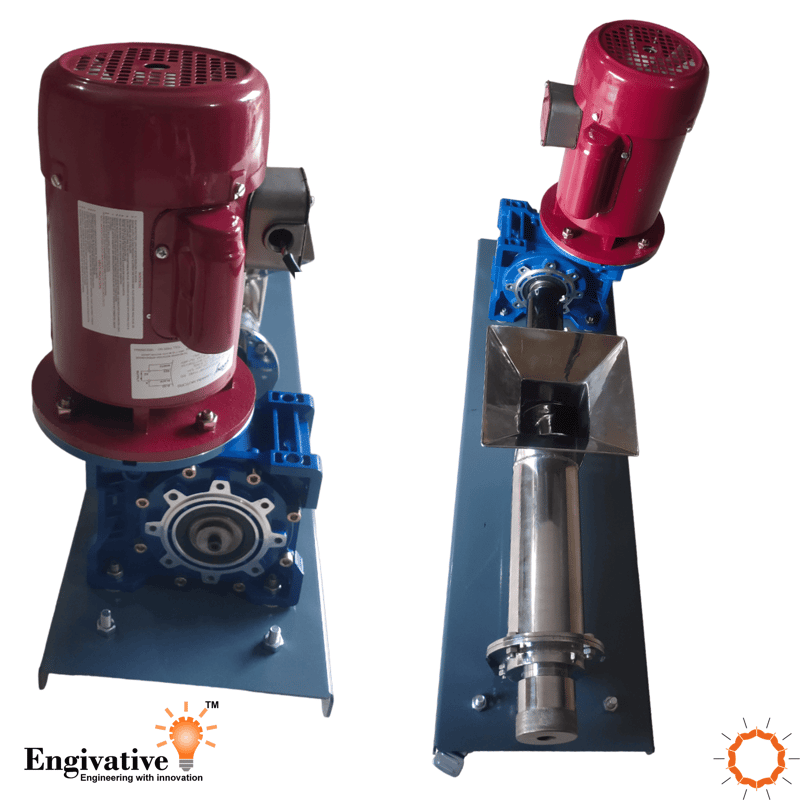

Gopichandan Stick making machine

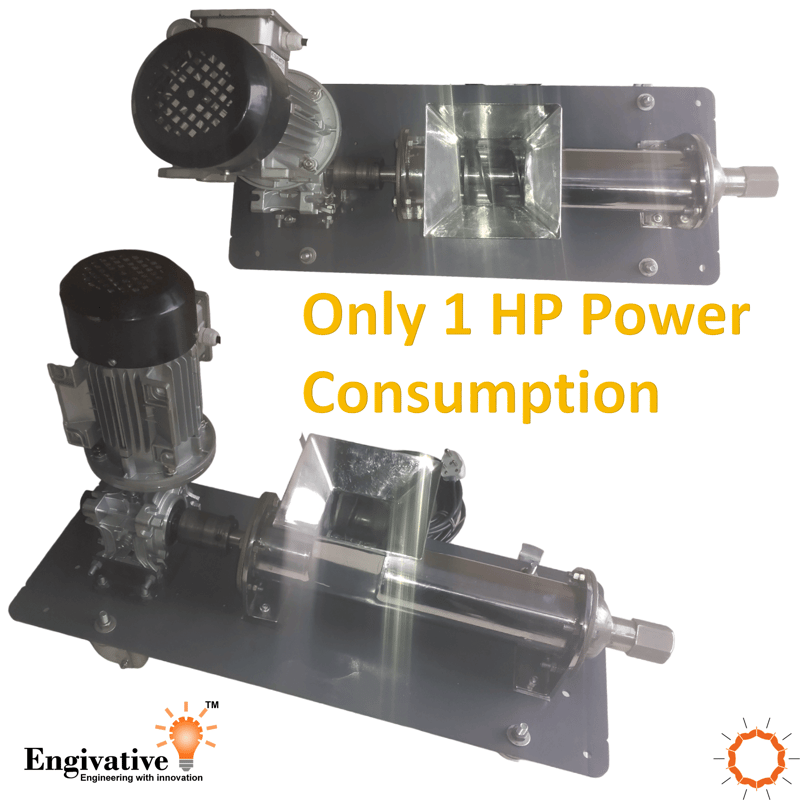

Power rating		1 HP
Supply power to machine

Power rating		1 HP
Supply power to machine		220 V AC Single phase
Motor		1 Phase x 1 HP x 1440 RPM
AC Drive		1 HP std make with Enclosure panel and accessories
Gearbox		Aluminium Die cast body with worm reduction
Gearbox Ration		50 1 with reduction
Maximum speed of screw		30 RPM

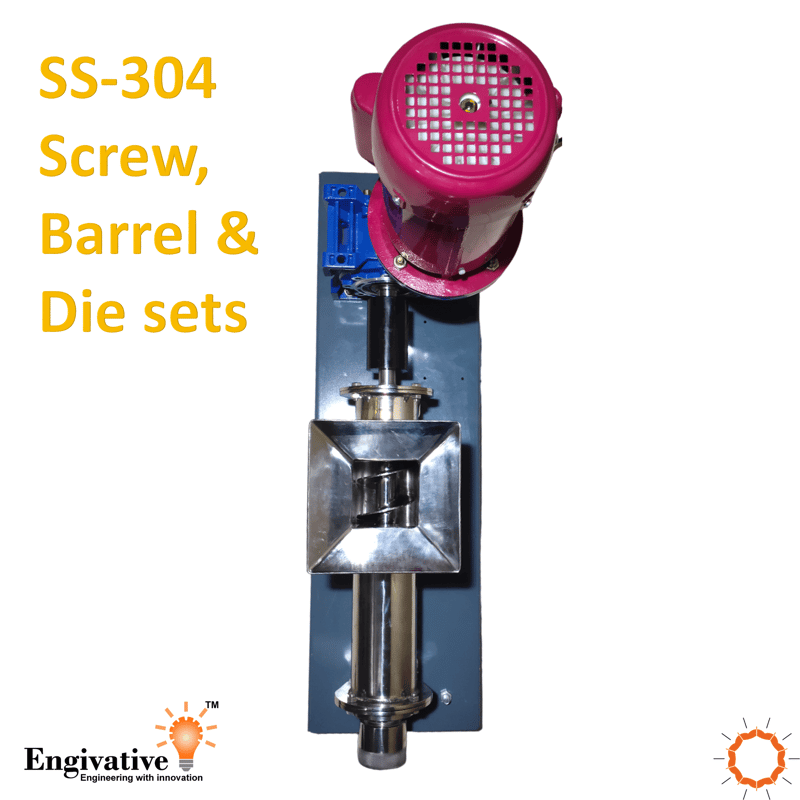

MOC process contact		SS-304

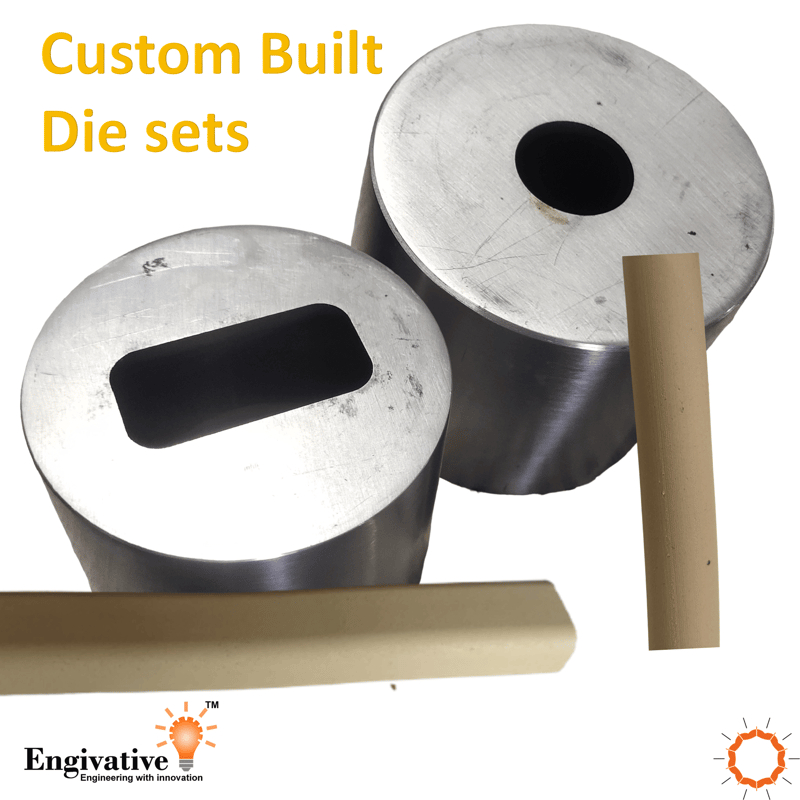

Extrusion Die		2 nos (As per your specifications)
Extruder screw Size		80 NB x 300 Long Aproximate
Machine Frame		MS powder coated with wheel and locking system
Processing Capacity		About 40 Kg per hour
Maximum Volumetric capacity		About 55 litres per hour
