Production Description:

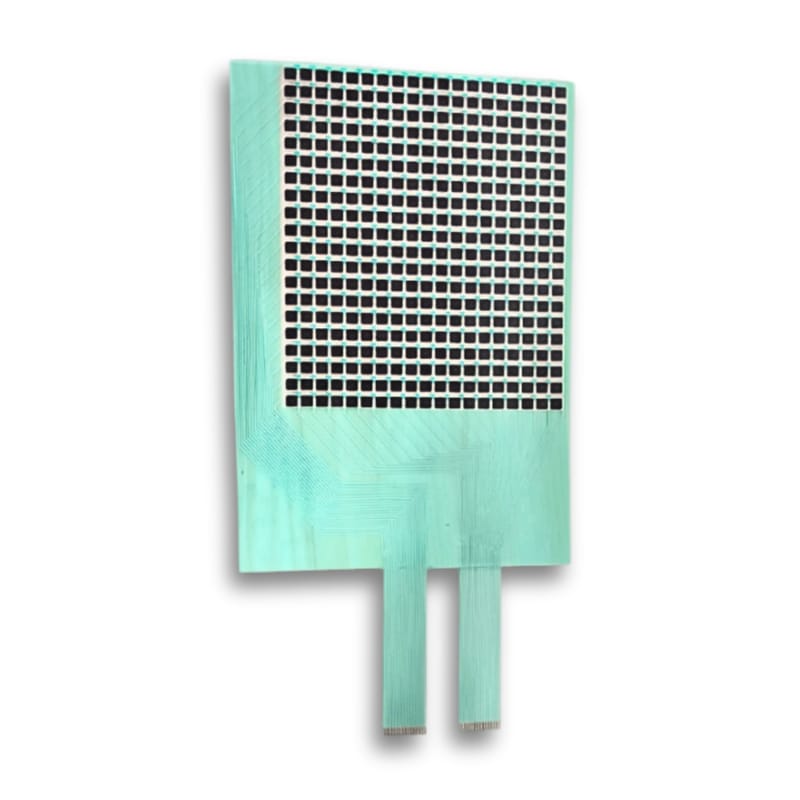

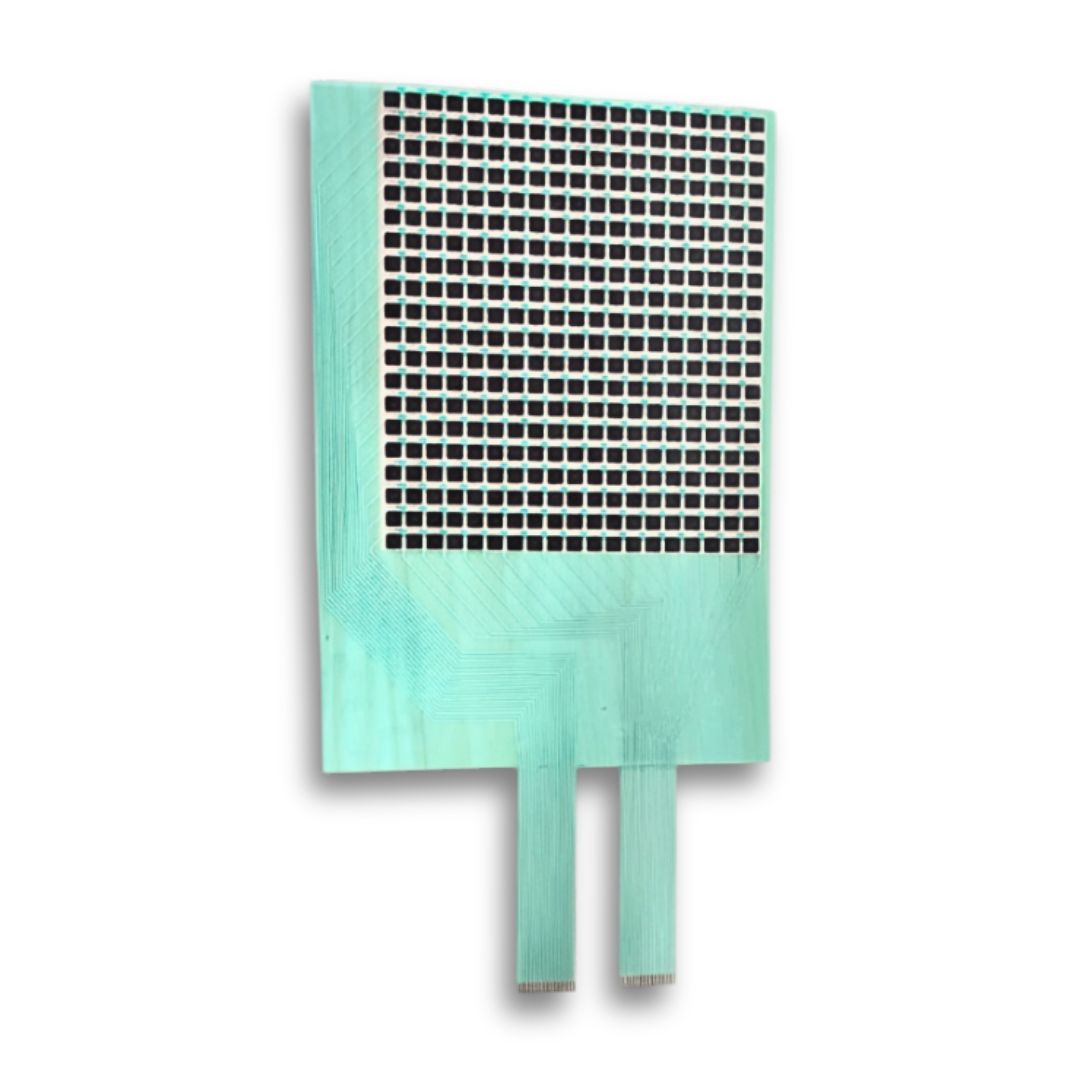

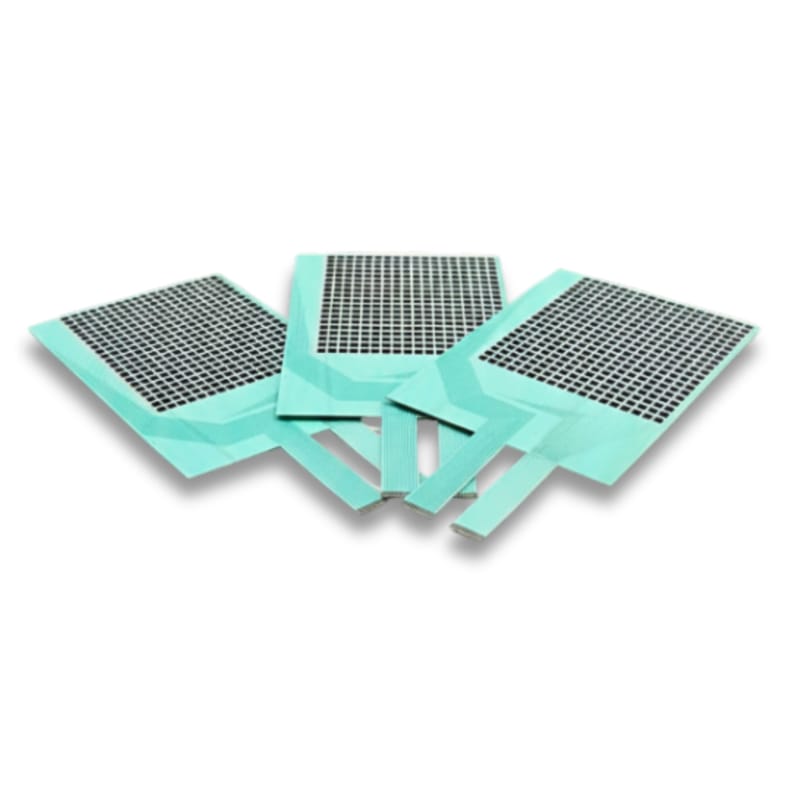

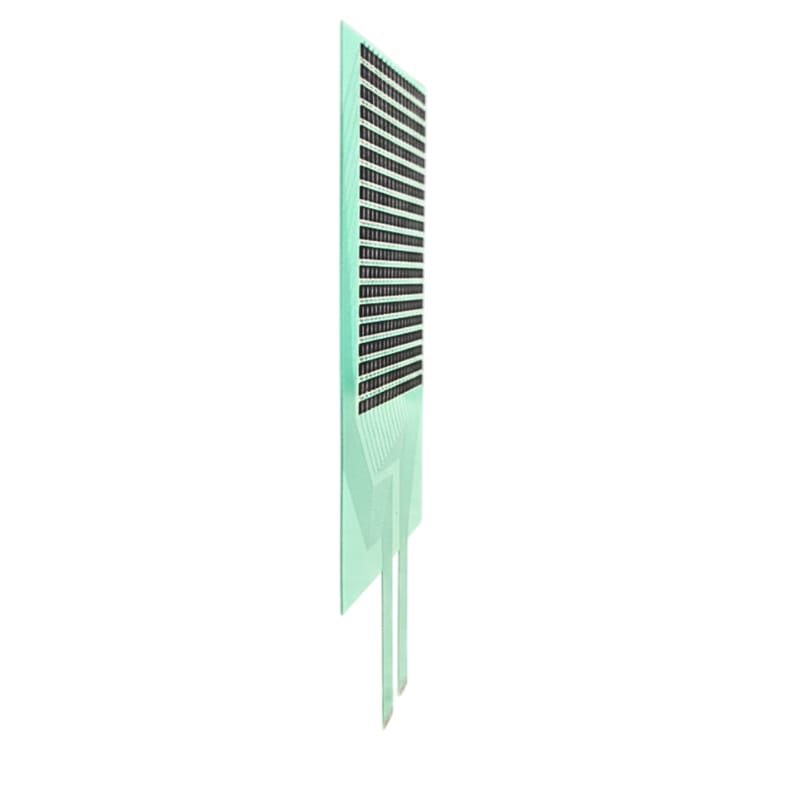

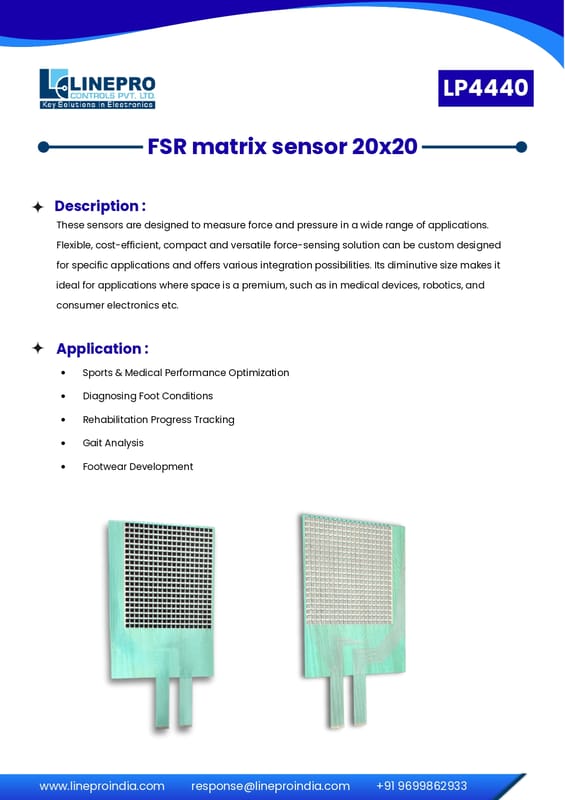

The FSR Matrix Sensor (20 × 20) is a flexible force-sensitive resistor array designed for measuring force and pressure distribution across a defined surface. It consists of 400 sensing points arranged in a 20 × 20 matrix, enabling accurate detection of applied force and pressure patterns. Manufactured on a durable PET substrate with carbon-based resistive material and silver conductive traces, the sensor offers fast response, high durability, and reliable performance for medical, sports, and industrial sensing applications.

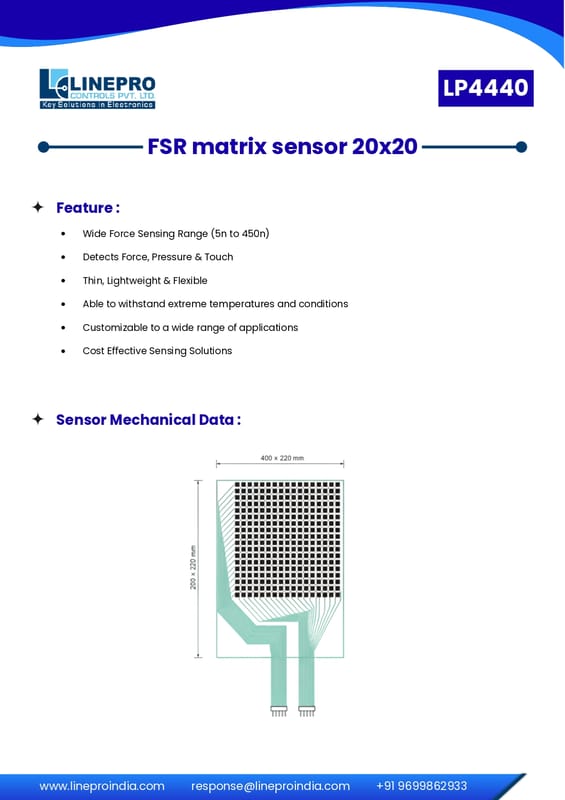

Key Features:

• 20 × 20 force-sensing matrix (400 sensing points)
• Enables pressure and force distribution measurement
• Thin, lightweight, and flexible construction
• Fast response time
• Carbon resistive sensing layer with silver conductive traces
• High durability for repeated mechanical loading

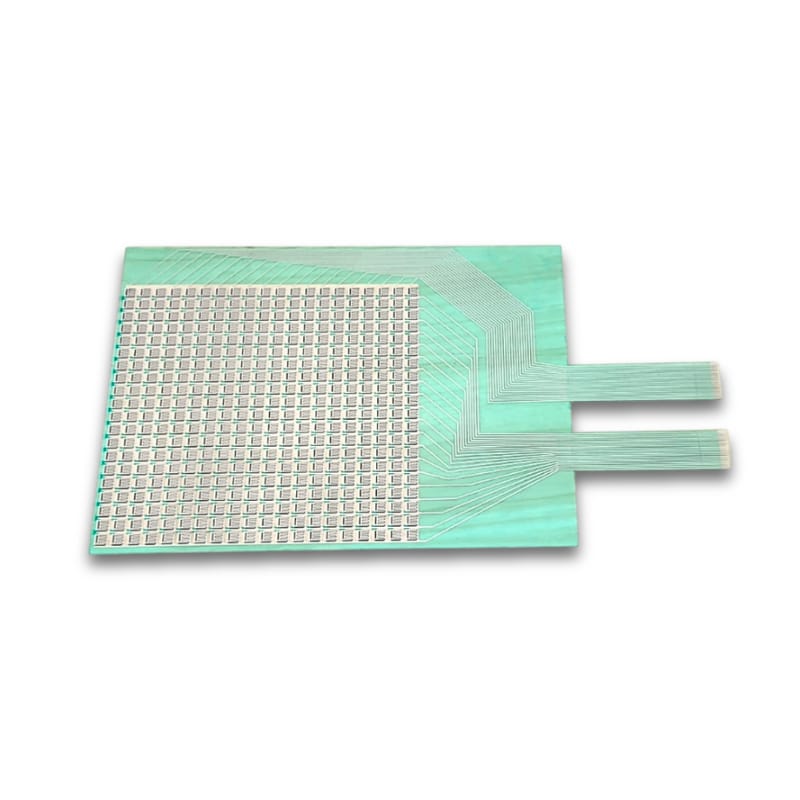

• Flexible tail connectors for easy integration
• Suitable for medical, sports, and industrial applications

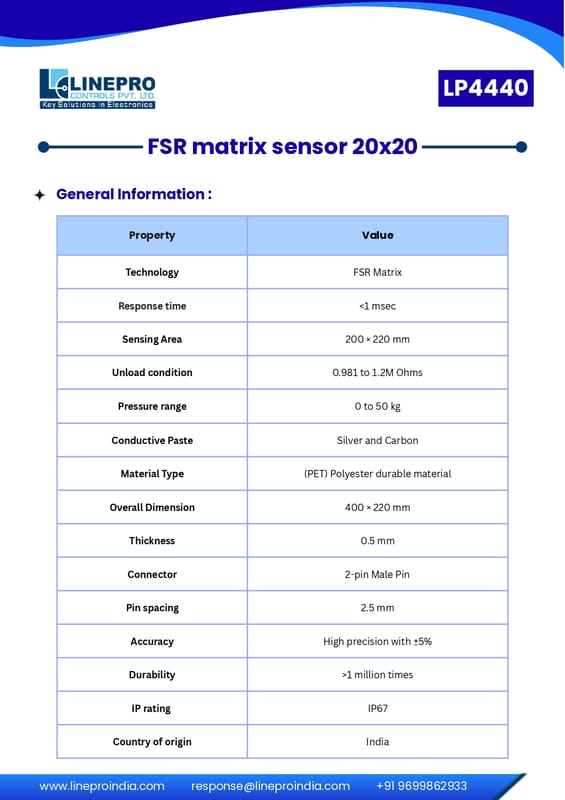

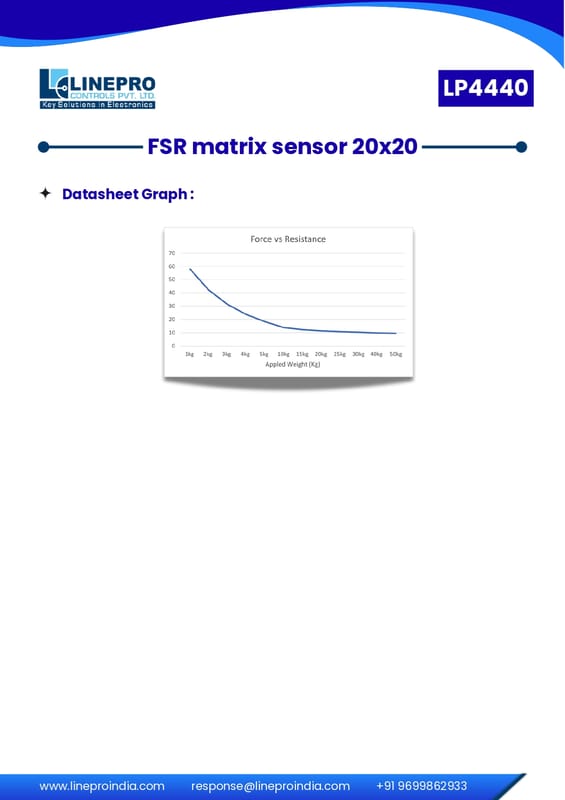

Product Details:

• Sensor Type: Force Sensitive Resistor (FSR) Matrix
• Matrix Configuration: 20 × 20
• Number of Sensing Points: 400
• Active Sensing Area: 220 × 220 mm

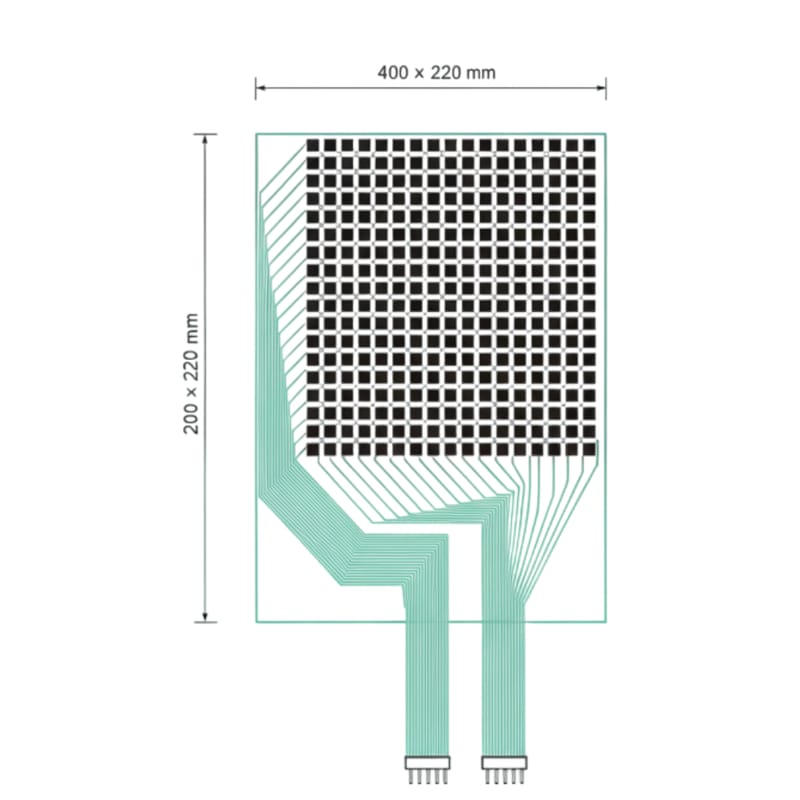

• Overall Dimensions: 400 × 220 mm
• Sensing Technology: Resistive (FSR)
• Response Time: < 1 ms
• Force Range: 5 N to 450 N
• Pressure Range: 0 – 71 PSI (0 – 5 kg/cm²)
• Resistance Range: 0.981 – 1.2 MΩ
• Sensing Material: Carbon
• Conductive Material: Silver
• Substrate Material: PET (Polyester)
• Thickness: Approx. 0.5 mm
• Connector Type: Dual flexible tail connectors
• Pin Spacing: 2.5 mm
• Accuracy: ±5%
• Durability: > 1 million actuations
• IP Rating: IP67 (when properly encapsulated)
• Country of Origin: India
