Analog Input Module with Ethernet

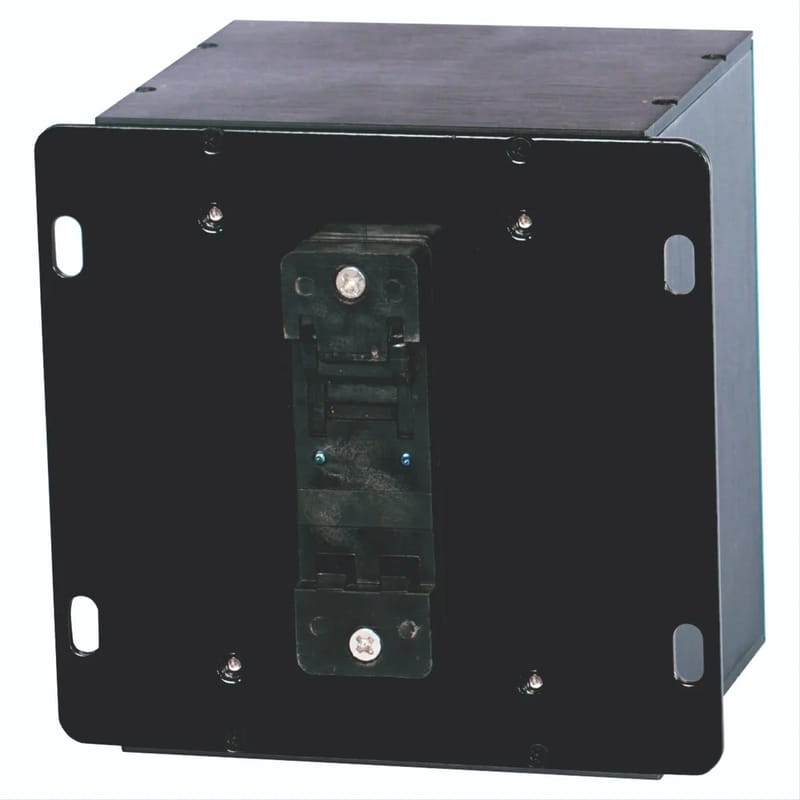

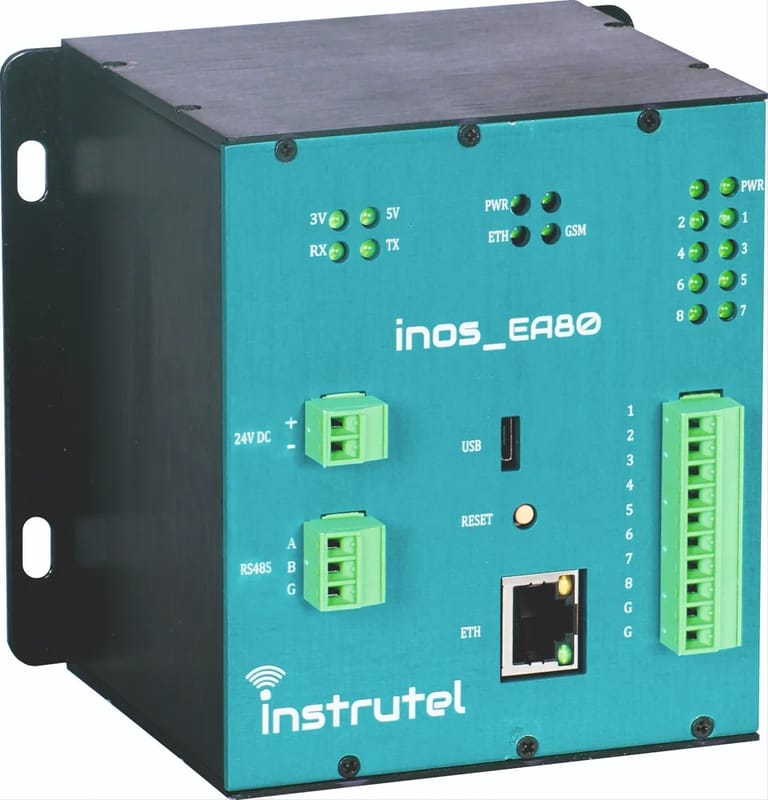

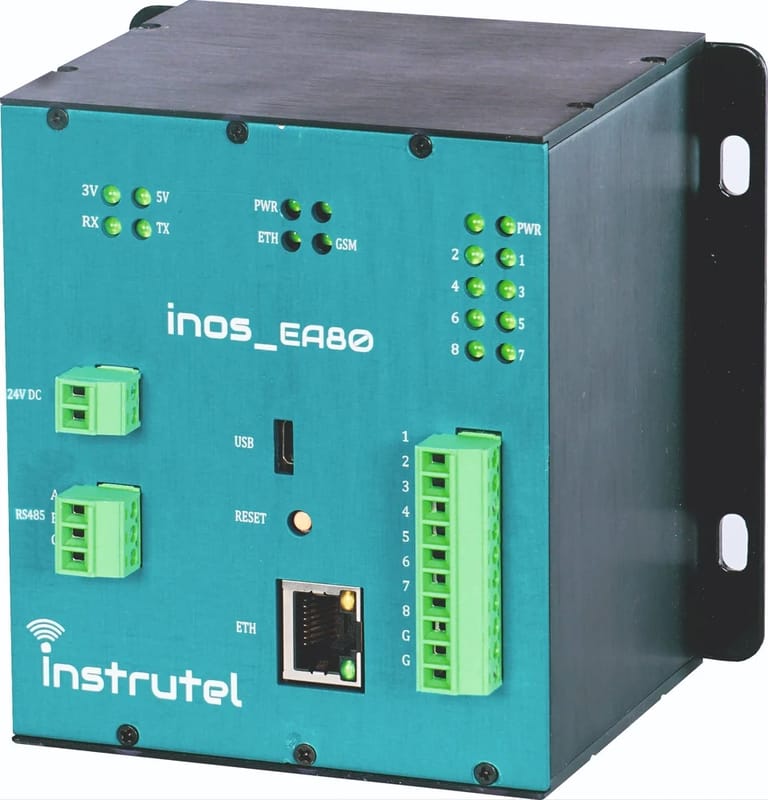

Number of Channels8BrandInstrutelUsage/ApplicationIndustrialNetwork TypeLAN, RS485Packagning TypeBoxFeatures 8 Channel 4-20mA/0-10V, 16-bit ADC Provision to set Parameter Range, High and Low set points for each channel Compact Din rail Mounting MODTCP & Modbus RTU RS485 Modular Architecture Rugged Durability LED Indication for RS485 Communication Field signal indication for current inputsUse Cases Process Automation Automotive Industry Retrofit old machines with new devices Building Automation Sub-station Automation Input to Output Expansion / Integration Process OptimizationSpecifications PowerOperating Voltage : 24 VDC.Power Consumption : Maximum 5 Watt.Analog InputsAnalog Inputs : 08 Channel 4 - 20mA / 0 - 10V.ADC resolution : 16-bit.ADC accuracy : 0.1%FS.Isolation Type : Isolated(2KV) Analog to Digital.Data ConnectivityConnectivity Supported : Ethernet RJ45, Isolated RS485 2 wire.Protocol Supported : ModTCP, Modbus RTU.Watchdog Timer : System (5 Sec).EnvironmentalOperating Temperature : 0 C to + 70 C.Storage Temperature : -40 C to + 85 C.Operating Humidity : 0 to 95% (non-condensing).Pin Mapping(+) 24V_VCC(-) 24V_Ground(A) RS485 A(B) RS485 B(G) RS485 G1 - Analog Input 012 - Analog Input 023 - Analog Input 034 - Analog Input 045 - Analog Input 056 - Analog Input 067 - Analog Input 078 - Analog Input 08G - GroundMechanicalDimensions (mm) : 94.0 (L) X 105.0(W) X 80.0(H)Enclosure : Aluminum HE30Weight : 650g
