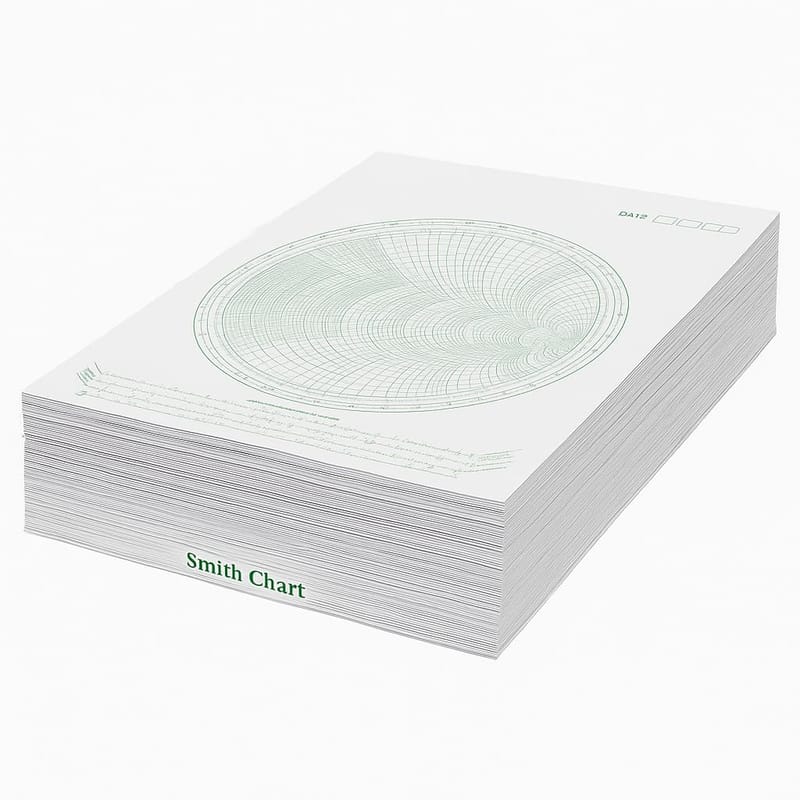

Smith Chart Graph Paper (pack of 100) – A4 Size 8 X 11 Inches– Conformal (möbius) Projection Rf & Microwave Impedance Plotting Sheets – Green Grid on White – Precision Engineering Draft Papers

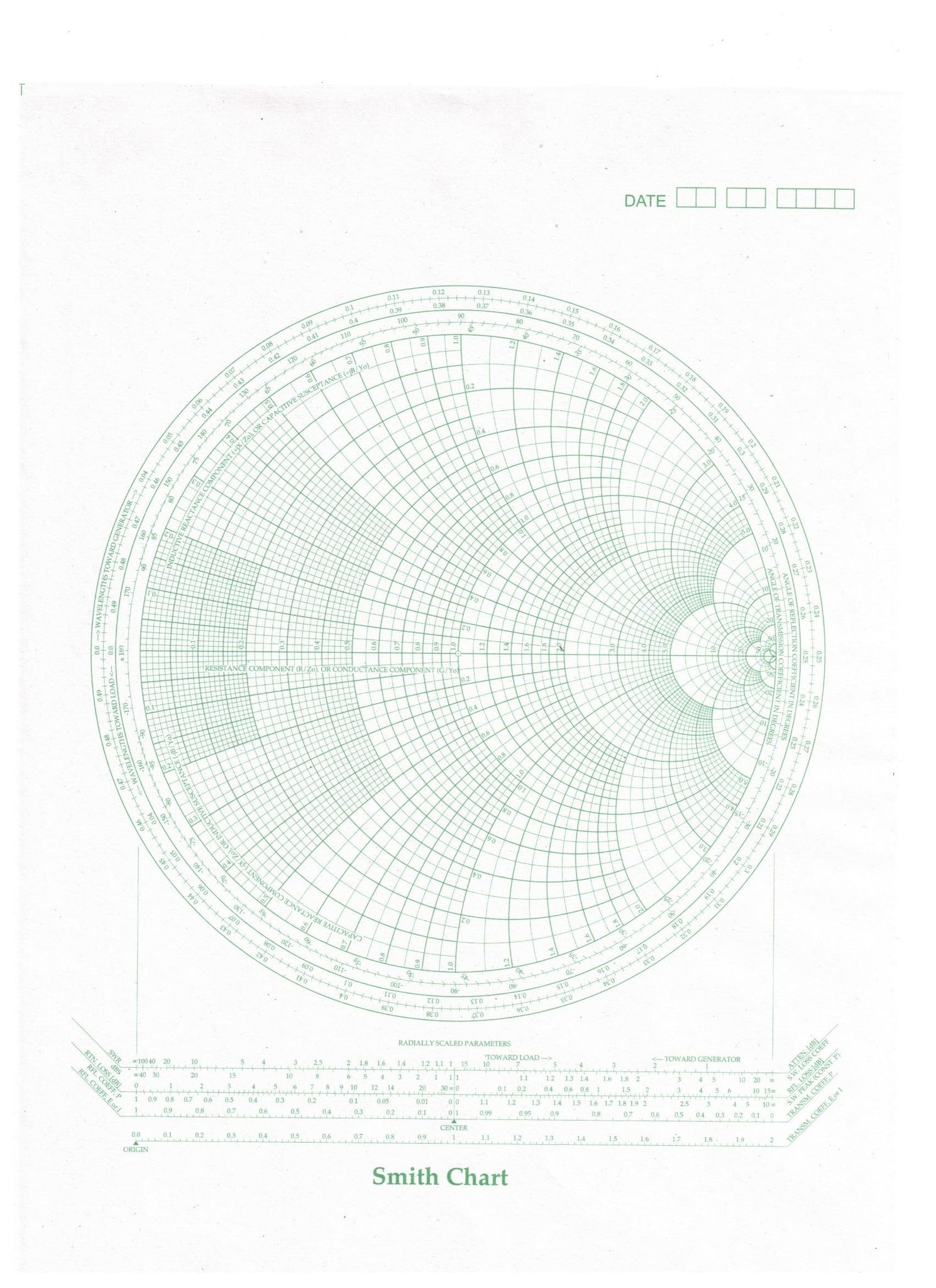

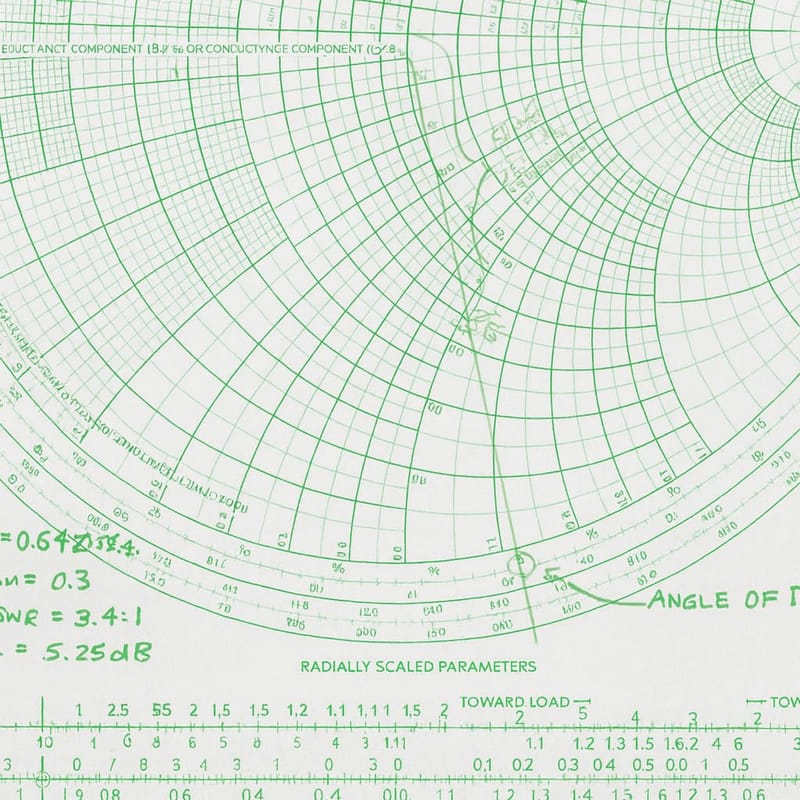

This Smith Chart Graph Paper is designed for RF and microwave engineers, technicians, and students who work with transmission lines, antennas, and impedance matching. Printed in high-contrast green on white, each sheet features a conformal (Möbius) projection mapping the normalized impedance/admittance plane to the unit circle, preserving angles for accurate plotting and analysis. Ideal for quick manual calculations, lab work, and teaching, these charts clearly display constant-resistance circles, constant-reactance arcs, and outer scales for VSWR, reflection coefficient, and normalized impedance. The smooth, bleed-resistant surface is perfect for pencil, pen, or fine-liner, making it an essential tool for professional and academic RF applications.
