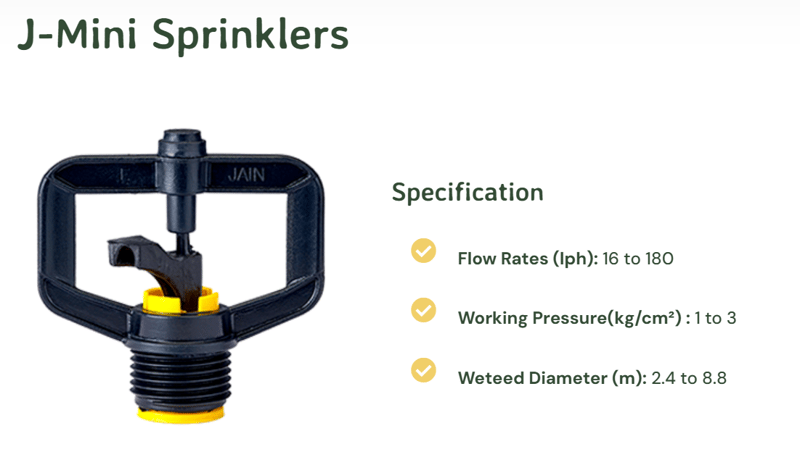

Specifications

• Flow Rates: 16-180 lph (4.2 - 47.6 gph) at an operating
• pressure of 1kg/cm² (14.22 psi)
• Inlet Connection: 3/8” BSP male threaded
• Recommended Spacing’s: 1.2 m to 4.4 m
• Recommended Pressure : 1 kg/cm² to 3 kg/cm²
• Nominal operating pressure is 1 kg/cm². Can be used for other pressure ratings (lower / higher) after consulting company representative and due care for spacing and application rate.

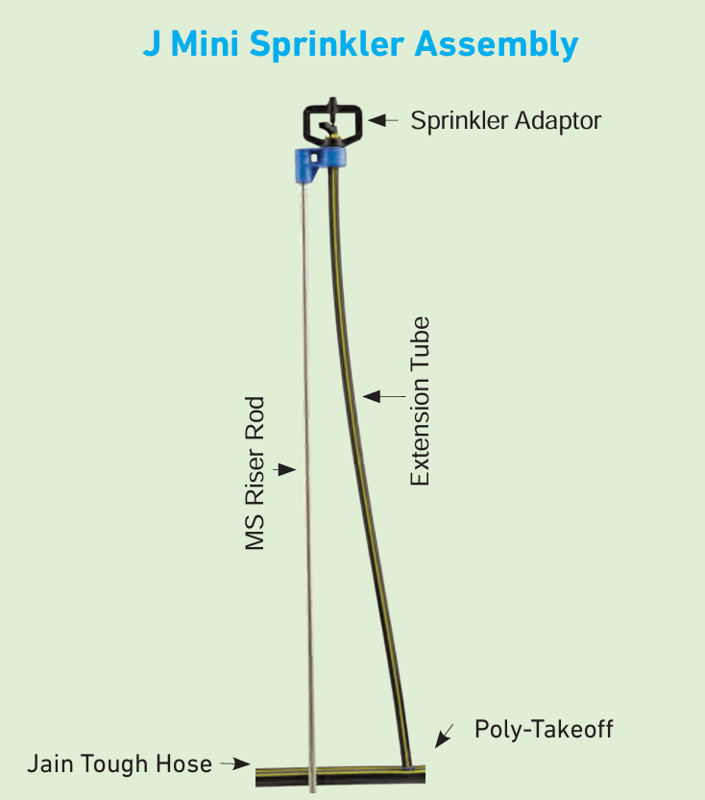

• Easy to install with different mounting options. For details please refer to “Polyfittings & Accessories” section.
• Minimum filtration requirement - 100 micron



  Application

  • Under-foliage irrigation
  • Useful in landscape, flower beds, shrubs and nurseries.
  • Suitable for soils where adequate wetting is difficult to achieve and where water is available only for short periods
  • Recommended for irrigation of vegetables, nurseries etc. with ‘Rainport™’ system



    Additional Features

    • Manufactured from special grade polymer material:Components manufactured out of revolutionary polymers to achieve wear resistance and longer trouble free performance.
    • Excellent Precipitation :Gentle precipitation, no damage to flowers / plant
    • Quality Come First: Each batch is tested for stringent quality parameters



      Features

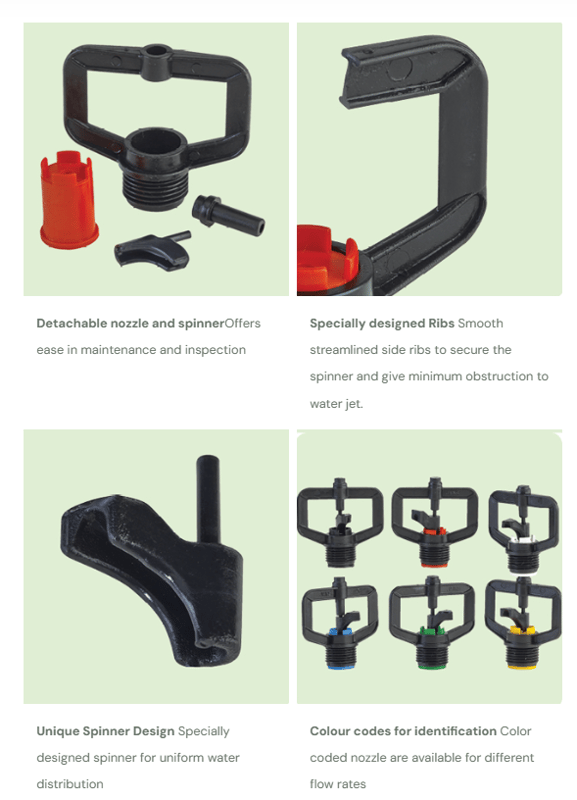

      • Detachable nozzle and spinner - Offers ease in maintenance and inspection
      • Specially designed Ribs - Smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet.
      • Unique Spinner Design - Specially designed spinner for uniform water distribution

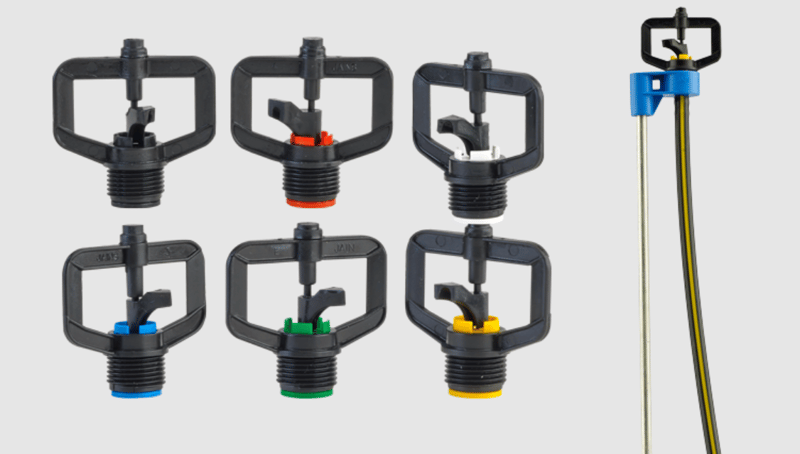

      • Color codes for identification - Color coded nozzle are available for different flow rates

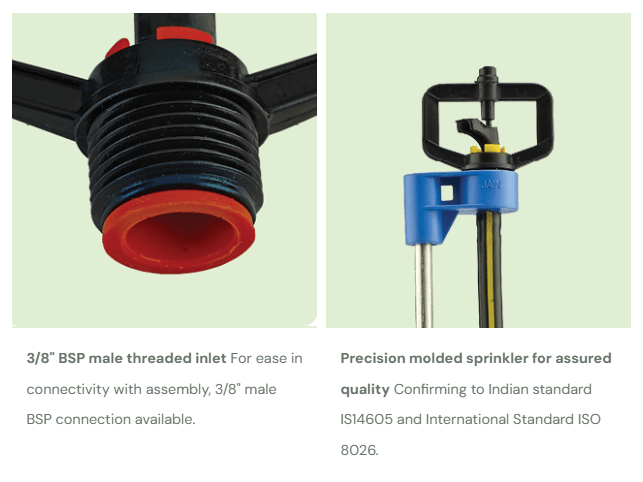

      • 3/8" BSP male threaded inlet - For ease in connectivity with assembly, 3/8" male BSP connection available.
      • Precision molded sprinkler for assured quality - Confirming to Indian standard IS14605 and International Standard ISO 8026.
