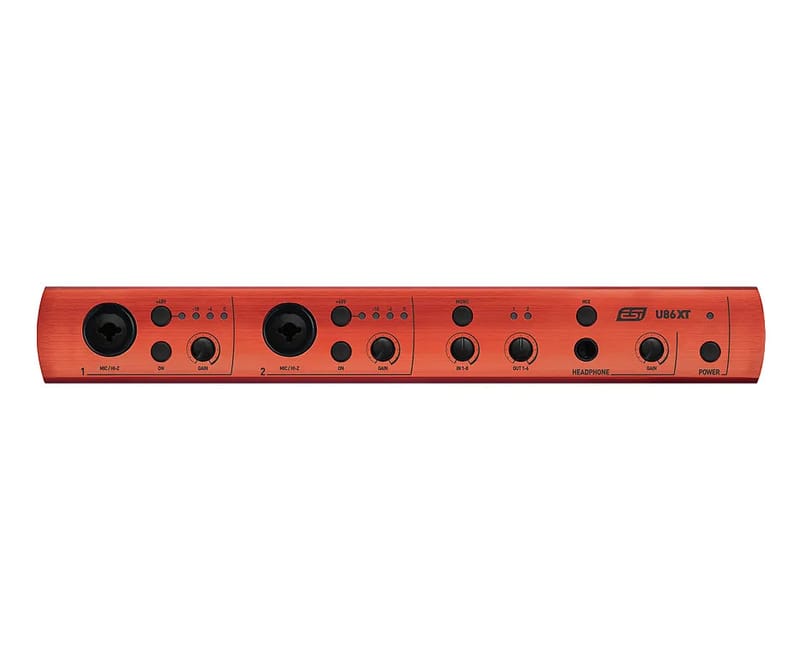

ESI Audio - U86 XT Specifications Feature Specification Inputs 8 x Analog Inputs (2 x Mic Preamps, 4 x Line Inputs, 2 x Hi-Z) Outputs 6 x TRS Balanced Outputs Audio Resolution 24-bit / 96kHz MIDI I/O 1 x MIDI In, 1 x MIDI Out Direct Monitoring Zero-latency Monitoring Headphone Output 1 x 1/4" Stereo with Independent Level Control Phantom Power +48V for Microphone Inputs Power Supply USB-Powered Dimensions 8.5 x 6.3 x 2 inches Weight 2.5 lbs Included Software DAWs, Virtual Instruments, Effects Plugins The ESI Audio - U86 XT is a professional-grade USB audio interface designed for musicians, producers, and audio engineers seeking a versatile and high-performance solution for both studio and live environments. With its extensive input and output options, pristine audio quality, and low-latency performance, the U86 XT is a comprehensive tool for any audio setup. It offers an ideal blend of functionality, portability, and rugged build quality to suit various recording and playback needs. Overview The U86 XT is equipped with eight analog inputs and six analog outputs, making it ideal for handling complex setups that require multiple instruments, microphones, and monitors. It supports up to 24-bit/96kHz audio resolution, ensuring that every detail of your sound is captured with exceptional clarity. Its professional audio performance makes it suitable for a wide range of applications, including multitrack recording, mixing, podcasting, and live performances. Key Features 8 Inputs and 6 Outputs: Versatile I/O options for accommodating large recording sessions. High-Resolution Audio: Up to 24-bit/96kHz for detailed and accurate sound. USB 2.0 Interface: Ensures fast, stable connectivity with minimal latency. Direct Monitoring: Zero-latency monitoring feature for seamless real-time performance. MIDI I/O: Includes MIDI input and output for connecting keyboards, controllers, and other MIDI devices. Solid Build Quality: Rugged construction designed for both studio and mobile use. Design and Build Quality The ESI Audio - U86 XT features a sleek, durable design with a solid metal chassis that can withstand the rigors of both studio use and travel. The layout of the interface is intuitive, with clearly labeled inputs and outputs, making it easy to set up and use. Its compact form factor allows it to be easily integrated into any studio setup, while its robust build ensures longevity and reliability. Front and Rear Panel Controls The front panel of the U86 XT provides easy access to gain controls for each input, along with dedicated buttons for phantom power and direct monitoring. The rear panel houses the majority of the I/O, including balanced TRS outputs, MIDI connections, and additional line inputs and outputs. This logical design allows for quick adjustments and a streamlined workflow during recording and playback sessions. Audio Performance At the core of the U86 XT's outstanding performance is its ability to deliver high-resolution audio. With support for up to 24-bit/96kHz, the interface ensures that your recordings are captured with pristine clarity, allowing for precise mixing and editing. The onboard preamps offer low-noise operation, making the U86 XT ideal for both vocals and instruments, while maintaining a clean signal path throughout. Exceptional Sound Quality 24-bit/96kHz Audio: Ensures high fidelity and accurate sound reproduction. Low-Latency Monitoring: Real-time, zero-latency monitoring for optimal recording sessions. Clean and Transparent Preamps: Ideal for capturing vocals and instruments without unwanted noise or distortion. Connectivity and Flexibility The U86 XT is designed to accommodate a wide variety of recording setups. Its eight inputs include two microphone preamps with phantom power for condenser microphones, four line-level inputs, and two Hi-Z inputs for guitars and basses. On the output side, it features six balanced TRS outputs for connecting to studio monitors, outboard gear, or other external devices. Additionally, MIDI I/O allows for easy integration with keyboards and other MIDI-compatible devices, making the U86 XT an incredibly versatile interface for any setup. Input and Output Options Mic Preamps: 2 x XLR/TRS combo inputs with phantom power. Line Inputs: 4 x balanced line inputs for various instruments and audio sources. Hi-Z Inputs: 2 x Hi-Z instrument inputs for direct guitar or bass recording. Line Outputs: 6 x TRS balanced outputs for studio monitors or external processing. MIDI I/O: 1 x MIDI in, 1 x MIDI out for connecting keyboards, controllers, and other MIDI devices. Direct Monitoring and Control The ESI U86 XT offers a direct monitoring feature that allows users to hear their input signals without any latency. This feature is critical during live recording sessions, as it provides musicians and vocalists with a seamless audio experience. The interface also features independent control for headphone monitoring, ensuring a customized mix for the user without affecting the main output. Real-Time Monitoring Features Zero-Latency Monitoring: Ensures real-time feedback for performers during recording sessions. Dedicated Headphone Output: Independent control for personal monitoring, perfect for live recording. Software Integration and Compatibility The U86 XT is compatible with all major digital audio workstations (DAWs), making it easy to integrate into any workflow. Whether you're using Ableton Live, Pro Tools, Cubase, or any other DAW, the U86 XT offers seamless operation with professional-level performance. The interface also includes a selection of audio production software, allowing users to start recording right out of the box. Software Bundle Included DAWs: Compatible with Ableton Live, Cubase, Pro Tools, Logic Pro, and other popular DAWs. Bundled Software: Comes with a selection of virtual instruments and effects for enhanced music production. Portability and USB Power Designed with portability in mind, the U86 XT is lightweight and compact, making it ideal for both home studios and mobile setups. The device is powered through a standard USB connection, eliminating the need for external power supplies and ensuring quick, hassle-free setup wherever you are. This portability, combined with its powerful features, makes the U86 XT perfect for musicians and producers on the go. Portability Features Compact Design: Small enough to fit into a laptop bag, making it ideal for mobile recording setups. USB-Powered: Eliminates the need for an external power source, allowing for simple plug-and-play operation. Applications and Use Cases The U86 XT is a versatile audio interface that excels in various applications. Whether you're recording a full band, producing electronic music, or podcasting, the interface’s extensive I/O options and high-resolution audio make it suitable for any situation. It’s also a great tool for live streaming, allowing for clear, professional audio in real-time broadcasts. Use Cases Multitrack Recording: Record multiple instruments simultaneously with eight inputs. Music Production: Ideal for studio setups requiring detailed, high-resolution sound. Podcasting: Capture professional-quality audio for podcast and voiceover recordings. Live Streaming: Improve the audio quality of live broadcasts with zero-latency monitoring. Accessories Included The U86 XT package includes essential accessories to enhance your recording and production workflow. Users receive a high-quality USB cable for connecting the interface to their computer, a user manual for easy setup, and access to a range of software resources to get started immediately. Included Accessories: High-speed USB cable for quick and easy connectivity. User manual with detailed instructions for setup and operation. Access to audio production software bundle, including DAWs and virtual instruments. Conclusion The ESI Audio - U86 XT is a versatile, professional-grade audio interface that delivers high-quality sound, extensive I/O options, and robust build quality. It is an excellent choice for musicians, producers, podcasters, and live streamers who require a reliable and flexible interface for their audio setup. Whether you’re in the studio or on the go, the U86 XT has the features and performance necessary to meet the demands of any recording environment.
